Reverse Proxying

Installing nginx

It’s as simple as installing it with APT:

$> sudo apt install nginx

Making sure it’s working

APT should automatically launch nginx, which will start listening on port 80 right away.

$> ss -tlpn
State  Recv-Q Send-Q Local Address:Port
LISTEN 0      128          0.0.0.0:`80`   ... users:(("`nginx`",...)
LISTEN 0      128             [::]:`80`   ... users:(("`nginx`",...)
...

You can check that the service is running with the following command:

$> sudo systemctl status nginx

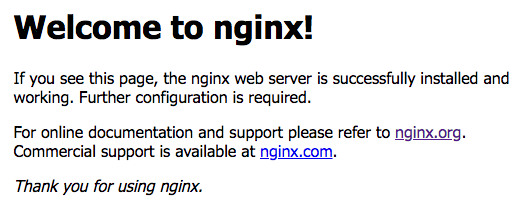

You should be able to access your server’s public IP address in a browser and see nginx’s welcome message:

Nginx configuration

Nginx stores its configuration in the /etc/nginx directory.

$> ls -1 /etc/nginx
conf.d
fastcgi.conf
fastcgi_params
koi-utf
koi-win
mime.types
modules-available
modules-enabled
nginx.conf
proxy_params
scgi_params
sites-available
sites-enabled
snippets
uwsgi_params
win-utf

The most important files are:

• nginx.conf is the main configuration file. Everything starts from there.
• conf.d is a directory to store reusable configuration fragments.
• sites-available is a directory where website configuration files are stored.
• sites-enabled is a directory containing symbolic links to the configurations in sites-available.

The main configuration file

The main /etc/nginx/nginx.conf file is a tree-like structure formed of contexts delimited by braces ({ and }). Each context contains configuration related to a specific area of concern.

The basic structure is as follows:

# Main context: global nginx options

events {
  # Events context: connection handling options
}

http {
  # HTTP context: web server & reverse proxy configuration

  server {
    # Server context: website configuration
  }

  server {
    # Another server...
  }
}

These contexts can contain a number of directives.

Includes

Nginx has an include directive which allows you to split the configuration into several files instead of having one big file. As you can see, nginx already includes several other files out of the box:

$> grep include /etc/nginx/nginx.conf
include /etc/nginx/modules-enabled/*.conf;
include /etc/nginx/mime.types;
include /etc/nginx/conf.d/*.conf;
include /etc/nginx/sites-enabled/*;

The most important include is /etc/nginx/sites-enabled/*. Any file in there will be loaded in the http context, which means they a good place to define server contexts in.

sites-available vs. sites-enabled

By convention, nginx has two directories for website configuration files:

• sites-available contains the actual configuration files. For example, you could create a file at /etc/nginx/sites-available/example-site to configure nginx to serve your website.

  This directory is not included by nginx, so configuration files in it are not automatically picked up.

• sites-enabled contains symbolic links to the configuration files in sites-available.

  This directory is included by nginx. Configuration files in it (or links to configuration files) are automatically loaded.

/etc/nginx/sites-enabled/example -> /etc/nginx/sites-available/example

Things are set up like this so that you can work on configuration files in sites-available but not actually enable them until you put the symbolic link in sites-enabled. It also allows you to quickly disable a website without deleting its configuration file.

For example, you could quickly disable a site by deleting its symbolic link:

$> sudo rm /etc/nginx/sites-enabled/example

And re-enable it whenever you want by re-creating the link:

# Create a symbolic link in sites-enabled, pointing to sites-available:
$> sudo ln -s /etc/nginx/sites-available/example /etc/nginx/sites-enabled/

All this without touching the actual configuration file: /etc/nginx/sites-available/example.

Reloading nginx’s configuration

When you put new symbolic links in sites-enabled, or modify configurations in sites-available, nginx will not automatically reload them.

You can restart nginx, which will make it reload the configuration, but you can also tell it to reload its configuration without shutting down. Nginx reacts to some Unix signals in certain ways. Notably, it reloads its configuration when receiving a HUP signal.

You can send the signal to the nginx master process yourself with the kill command, or you can simply reload the associated systemd service, which will send the signal for you:

$> sudo systemctl reload nginx

Common nginx directives

Nginx has many directives that can be put in various contexts.

These are the most commonly used ones in the server context, used to serve websites (static or dynamic):

nginx configuration examples

How to use these examples

Each of the following examples can be put in a separate file in the /etc/nginx/sites-available directory:

• Copy a website configuration example.
• Save it in /etc/nginx/sites-available/example. (Replace example with whatever name you want to name your site.)

• Create a symbolic link to it in /etc/nginx/sites-enabled with this command (this is one command on 3 lines):

  $> sudo ln -s \
       /etc/nginx/sites-available/example \
       /etc/nginx/sites-enabled/example


• Check that you have not made a mistake:

  $> sudo nginx -t


• Instruct nginx to reload its configuration with this command:

  $> sudo systemctl nginx reload


Static website configuration

This configuration tells nginx to serve the static files in the directory /home/jde/example when a request arrives on port 80 for the domain example.com. This demonstrates nginx’s capabilities as a basic web server.

server {
  listen 80;
  server_name example.com;
  root /home/jde/example;
  index index.html;

  # Instruct the browser to cache images, icons,
  # video, audio, HTC, etc for 30 days.
  location ~* \.(?:jpg|jpeg|gif|png|ico|cur|gz|svg|mp4|ogg|ogv|webm|htc)$ {
    access_log off;
    add_header Cache-Control "max-age=2592000";
  }
}

More information

The Cache-Control header is sent to the client’s browser to tell it that these media files (jpg, png, etc) can be cached, i.e. there’s no need to redownload them the next time.

Reverse proxy configuration

This configuration tells nginx to forward any request on port 80 for the domain dynamic.example.com to the application or server at address http://127.0.0.1:3000, making it behave as a reverse proxy.

server {
  listen 80;
  server_name dynamic.example.com;
  root /path/to/static/files;

  # Proxy requests for dynamic content to another server/application.
  location / {
    proxy_pass http://127.0.0.1:3000;
  }
}

More information

In this example, the proxy_pass address is a local address, but it could well be the IP address of another server in an internal network.

Load balancing configuration

This configuration tells nginx to perform load balancing on incoming requests on port 80 for the domain big.example.com. With the upstream directive, it defines a cluster of 4 servers among which to distribute the load.

# Cluster of applications or servers to handle requests.
upstream big_server_com {
  server 127.0.0.3:8000 weight=5; # local application
  server 127.0.0.3:8001 weight=5; # local application
  server 10.192.67.3:8000; # separate server
  server 10.192.56.12:8001; # separate server
}

server {
  listen 80;
  server_name big.example.com;

  # Proxy requests to the cluster.
  location / {
    proxy_pass http://big_server_com;
  }
}

More information

By default, nginx uses a weighted round robin algorithm to decide to which server each request is proxied. A weight parameter can be specified to direct more requests to specific servers.
