Deploy a PHP website with nginx and the FastCGI process manager

Legend

Parts of this exercise are annotated with the following icons:

• A task you MUST perform to complete the exercise
• An optional step that you may perform to make sure that everything is working correctly, or to set up additional tools that are not required but can help you
• The end of the exercise
• The architecture of the software you ran or deployed during this exercise.
• Troubleshooting tips: how to fix common problems you might encounter

Identify your PHP-FPM version

During this exercise, you will use a package and service called php-fpm that you installed on your server back during the first deployment exercise. The version of php-fpm running on your server will depend on which Ubuntu version you chose when configuring your Azure instance. It will likely be 8.3 for Ubuntu 24.04.

You can check which version you have by running either of the following commands:

$> ls /etc/php
8.3

$> dpkg --list | grep php-fpm
ii  php-fpm   2:8.3+93ubuntu2   ...

In this case, the output indicates that version 8.3 is installed. The remaining sections of the exercise assume that this is the case. If not, you will need to modify the commands containing the version number accordingly.

When you did the systemd exercise, you used the PHP development server (with the command /usr/bin/php -S 0.0.0.0:3000). As its documentation states, it is meant for development, not to be used on a production server. One of the main reasons it’s a bad idea to use it on a server is because it is single-threaded, and can only serve one request at a time.

During the SFTP exercise, you installed the php-fpm package, which provides the PHP FastCGI Process Manager (FPM).

PHP-FPM is both a process manager and a FastCGI server:

• It will run multiple PHP processes to be able to serve requests from multiple clients at the same time.
• A web server (such as nginx) can ask it to execute PHP files using the FastCGI protocol.

Use the following command for more information on how PHP-FPM manages processes (for version 8.3):

$> grep -A 50 -m 1 "number of child processes" /etc/php/8.3/fpm/pool.d/www.conf

The php-fpm package is integrated with systemd out of the box (its service file is /lib/systemd/system/php8.3-fpm.service for version 8.3). It should already be running:

$> sudo systemctl status php8.3-fpm
● php8.3-fpm.service - The PHP 8.3 FastCGI Process Manager
   Loaded: loaded (/lib/systemd/system/php8.3-fpm.service; enabled; vendor preset: enabled)
   Active: active (running) since Thu 2019-01-10 17:58:07 UTC; 27min ago
   ...

Would you like to know more?

👍 Great! 📚 Always tell me more!

😵‍💫 Stop telling me more...

Configure PHP-FPM to listen on a port

The PHP FastCGI Process Manager (FPM) can accept connections either on a local TCP port or by default through a Unix domain socket.

More information

A Unix domain socket is a special kind of Unix file (denoted by the type s when listed by ls -l) which allows bidirectional communication between processes on the same machine by writing to and reading from that file.

Because we’ve been making TCP (HTTP/SSH/SFTP) connections so far, we’ll configure PHP-FPM to also listen on a port rather than a domain socket for consistency.

You will need to edit the PHP-FPM web configuration file which you can find at /etc/php/8.3/fpm/pool.d/www.conf (for version 8.3). Edit this file:

$> sudo nano /etc/php/8.3/fpm/pool.d/www.conf

Find the section configuring the listening address (the listen = ... key):

; The address on which to accept FastCGI requests.
; Valid syntaxes are:
;   'ip.add.re.ss:port'    - to listen on a TCP socket to a specific IPv4 address on
;                            a specific port;
;   '[ip:6:addr:ess]:port' - to listen on a TCP socket to a specific IPv6 address on
;                            a specific port;
;   'port'                 - to listen on a TCP socket to all addresses
;                            (IPv6 and IPv4-mapped) on a specific port;
;   '/path/to/unix/socket' - to listen on a unix socket.
; Note: This value is mandatory.
listen = /run/php/php8.3-fpm.sock

Tip

You can search for a specific word in nano by typing the Ctrl-W shortcut, then typing your word (e.g. “listen”) and finally pressing the Enter key. This will scroll to the first occurrence of the word in the file. You can find further occurrences of the word by typing Ctrl-W followed by Enter again.

Remove the existing listen = /run/php/php8.3-fpm.sock line, or comment it by adding a ; comment character at the beginning of the line. Then add a new listen = 9000 line. This will instruct PHP-FPM to listen on port 9000 rather than using the Unix domain socket file:

; listen = /run/php/php8.3-fpm.sock
listen = 9000

More information

Why port 9000, you ask? Why not? It does not matter which port you choose, as long as another process does not already listen on that port.

By default, PHP-FPM will accept connections from anywhere, including outside the server if the firewall lets the client through. For the sake of security, it is better to configure PHP-FPM to only accept local connections, i.e. from processes running on the same machine like nginx.

Find the section configuring allowed clients (the listen.allowed_clients = ... key). If it is commented, remove the leading ; comment character, and make sure the value is set to 127.0.0.1 (local clients only):

; List of addresses (IPv4/IPv6) of FastCGI clients which are allowed to connect.
; Equivalent to the FCGI_WEB_SERVER_ADDRS environment variable in the original
; PHP FCGI (5.2.2+). Makes sense only with a tcp listening socket. Each address
; must be separated by a comma. If this value is left blank, connections will be
; accepted from any ip address.
; Default Value: any
listen.allowed_clients = 127.0.0.1

For these changes to take effect, you must restart the PHP-FPM service:

$> sudo systemctl restart php8.3-fpm

Optional: check something is listening on port 9000

Running the ss -tlpn command should confirm that there is indeed a process listening on port 9000 on the server (the line indicating *:9000 as the local address and port):

$> ss -tlpn
State   Recv-Q  Send-Q  Local Address:Port  Peer Address:Port
LISTEN  0       128                 *:9000             *:*     (php-fpm)
LISTEN  0       80          127.0.0.1:3306       0.0.0.0:*     (mysqld)
LISTEN  0       128     127.0.0.53%lo:53         0.0.0.0:*     (systemd-resolve)
LISTEN  0       128           0.0.0.0:80         0.0.0.0:*     (nginx IPv4)
LISTEN  0       128              [::]:80            [::]:*     (nginx IPv6)
LISTEN  0       128           0.0.0.0:22         0.0.0.0:*     (sshd IPv4)
LISTEN  0       128              [::]:22            [::]:*     (sshd IPv6)

Add the TODOLIST_DB_PASS environment variable to PHP-FPM

The PHP todolist application requires the TODOLIST_DB_PASS environment variable to successfully connect to its database. You previously set that variable in the systemd service file you created during the systemd exercise: /etc/systemd/system/todolist.service.

In this exercise, systemd will no longer be running your application directly. It runs PHP-FPM, which will in turn execute your application’s PHP code. By default, PHP-FPM does not pass environment variables from systemd to the application. Therefore, you need to configure PHP-FPM to add this variable to your application’s environment.

Edit the PHP-FPM web configuration file again:

$> sudo nano /etc/php/8.3/fpm/pool.d/www.conf

Find the environment section which looks like this:

; Pass environment variables like LD_LIBRARY_PATH. All $VARIABLEs are taken from
; the current environment.
; Default Value: clean env
;env[HOSTNAME] = $HOSTNAME
;env[PATH] = /usr/local/bin:/usr/bin:/bin
;env[TMP] = /tmp
;env[TMPDIR] = /tmp
;env[TEMP] = /tmp

Add a line to define the TODOLIST_DB_PASS variable with the correct value.

Tip

Quote the value with double quotes (") if it contains whitespace or special characters. Also, be sure to remove the leading ; which makes the line a comment.

Reload PHP-FPM

For the change to take effect, you must restart the PHP-FPM service:

$> sudo systemctl restart php8.3-fpm

Make sure it is still running:

$> sudo systemctl status php8.3-fpm
● php8.3-fpm.service - The PHP 8.3 FastCGI Process Manager
   Loaded: loaded (/lib/systemd/system/php8.3-fpm.service; enabled; vendor preset: enabled)
   Active: active (running) since Thu 2019-01-10 17:58:07 UTC; 3s ago
   ...

Tip

If PHP-FPM is no longer running, you may have corrupted the configuration file. If the problem is not clear in the output of the status command, check the entire logs with sudo journalctl -u php8.3-fpm to see if you can find more information.

Create an nginx configuration file to serve the application

Create an nginx configuration file named todolist for the application. Put it in nginx’s /etc/nginx/sites-available directory like in the previous exercise.

In this exercise, you want to configure nginx as a reverse proxy: when it receives a request for the PHP todolist, it should proxy it to PHP-FPM (in other words, nginx should ask PHP-FPM to execute the application’s PHP code, because nginx itself does not know how to execute PHP code).

You can start with the reverse proxy configuration, but you need to make the following changes:

• Like in the previous exercise, adapt the server name and root directory.

  You can use the existing todolist-repo directory you have been using in previous PHP todolist exercises. There is no need to clone another copy.

Tip

In the DNS exercise, you should have configured a wildcard domain name like *.jde.archidep.ch. This means that any subdomain you want under jde.archidep.ch, for example todolist.jde.archidep.ch, should reach your server.

• PHP-FPM uses the FastCGI protocol to receive requests to execute PHP code. This means that you cannot use nginx’s proxy_pass directive to define your proxy since it works with the HTTP protocol. Instead, you must replace it with two other directives:

  • You must configure nginx to set various FastCGI parameters. You could do this yourself, but nginx helpfully provides a configuration snippet which you can simply include like this:

    include snippets/fastcgi-php.conf;


  • You must tell nginx to proxy requests with the FastCGI protocol, and where to proxy them to, with its fastcgi_pass directive. This allows you to proxy requests either to a domain and IP address (e.g. localhost:9000) or to a Unix domain socket.

    You have previously configured PHP-FPM to listen on a port. Therefore, according to the documentation, you should configure a FastCGI proxy to localhost or 127.0.0.1 (since PHP-FPM is running on the same machine as nginx) and the same port you used in the PHP-FPM web configuration file for the listen key.

    This will make nginx proxy HTTP requests to PHP-FPM through that local port. PHP-FPM will then execute the PHP code and give the result to nginx, which will send it back to the client in the HTTP response.

Solution

Your /etc/nginx/sites-available/todolist file on your server should look something like this:

server {
  listen 80;
  server_name todolist.jde.archidep.ch;
  root /home/jde/todolist-repo;

  # Proxy requests for dynamic content to PHP-FPM.
  location / {
    include snippets/fastcgi-php.conf;
    fastcgi_pass localhost:9000;
  }
}

More information

The include directive provided above will include the file /etc/nginx/snippets/fastcgi-php.conf, which will in turn include /etc/nginx/fastcgi.conf. If you want to know what is required to make nginx properly proxy a request with the FastCGI protocol, you can look at the contents of these two files.

Enable the nginx configuration

Enable the todolist configuration by creating the correct symbolic link:

$> sudo ln -s /etc/nginx/sites-available/todolist /etc/nginx/sites-enabled/todolist

Make sure the symbolic link points to the correct file:

$> ls -l /etc/nginx/sites-enabled/todolist
lrwxrwxrwx 1 root root 32 Jan 10 17:07 /etc/nginx/sites-enabled/todolist -> /etc/nginx/sites-available/todolist

Reload the nginx configuration

Check whether the changes you have made are valid:

$> sudo nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

Tell nginx to reload its configuration:

$> sudo nginx -s reload

See it in action

Visit http://todolist.jde.archidep.ch (replacing jde with your username and archidep.ch with your assigned domain) and you should see the PHP todolist working.

What have I done?

You have replaced the PHP development server you had been using until now with PHP-FPM, a production-grade PHP process manager and FastCGI implementation which is much more optimized and supports concurrent requests. This means, among other things, that many more clients can now access the PHP todolist at the same time without having to wait on each other.

You have also configured nginx to act as a reverse proxy, forwarding requests for the PHP todolist application to PHP-FPM. When it receives an HTTP request, nginx will forward it to PHP-FPM using the FastCGI protocol. PHP-FPM will execute your application’s PHP code and give the result to nginx, which will send it back to the client. The communication flow looks something like this:

Browser ↔ Nginx ↔ PHP-FPM

This is a bit more complex than what you had before:

Browser ↔ PHP development server

But on the other hand, you are using PHP-FPM which is much more suitable for a production deployment. You are also using nginx, which allows you to deploy other applications and websites on the same server in addition to the PHP todolist.

In real production deployments, you will often find several processes plugged together to achieve the same goal. Here, nginx receives and dispatches the clients’ requests, while PHP-FPM manages your PHP application(s), and your application does what it’s supposed to do. This allows each process to focus on one thing and do it well. The PHP todolist application does not have to know about the other applications and websites that might be running on the server.

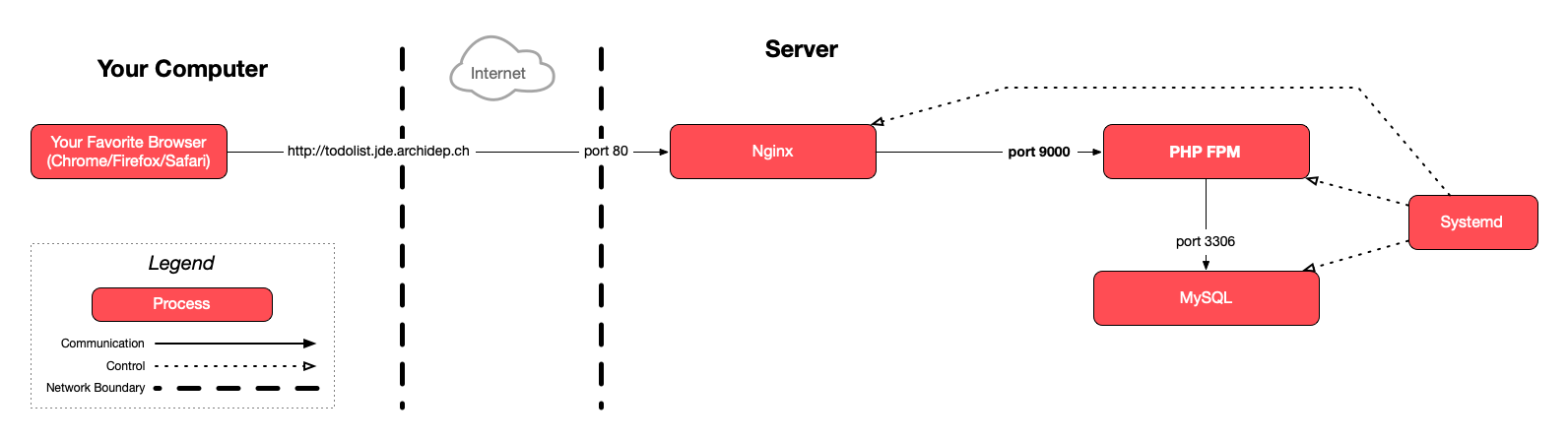

Architecture

This is a simplified architecture of the main running processes and communication flow at the end of this exercise:
