Containerize a web application using Docker

Legend

Parts of this exercise are annotated with the following icons:

• A task you MUST perform to complete the exercise
• Optional step that you may perform to make sure that everything is working correctly, or to set up additional tools that are not required but can help you
• Advanced tips on how to go further (or challenges!)
• The end of the exercise
• The architecture of the software you ran or deployed during this exercise
• Troubleshooting tips: how to fix common problems you might encounter

Containerize FibScale

Requirements

You need to have Docker installed on your machine. To do so, install Docker Desktop and use the recommended settings.

Fork and clone the FibScale repository:

$> git clone git@github.com:<YourGitHubUser>/fibscale.git

Open the project in your favorite text editor.

Create a .dockerignore file

If you look at the FibScale repository from the horizontal scaling exercise (on your cloud server), you may notice that a bunch of folders were created when running various commands like bundle install during the course of the exercise:

└── fibscale
    ├── compose.yml
    ├── config
    ├── Dockerfile
    ├── fibscale.rb
    ├── Gemfile
    ├── Gemfile.lock
    ├── LICENSE-txt
    ├── locustfile.py
    ├── __pycache__    <---- Created when running Locust
    ├── README.md
    ├── spec
    ├── vendor         <---- Created when running "bundle install"
    └── views

These folders were not part of the original repository. They contain dependencies and compiled files that can be produced from the source code and should be ignored. Indeed, if you look at the repository’s .gitignore file, you will see that they are ignored by Git.

Docker has a similar mechanism that plays a crucial role in optimizing the Docker build process: the .dockerignore file. This file specifies a pattern of files and directories to exclude from the context sent to the Docker daemon during the build process. This avoids copying unnecessary files when building the Docker image.

Given this information, create a .dockerignore file at the root of the project and exclude these irrelevant folders. The syntax is the same as the .gitignore file.

When building an image, Docker sends the entire context (i.e. all files and directories located in the build’s root directory) to the Docker daemon. This can be inefficient and time-consuming, especially if the context includes large or unnecessary files. By defining what files or directories should be ignored, the .dockerignore file helps in reducing the build time, ensuring that only relevant files are sent to the daemon. This not only streamlines the build process but also results in smaller Docker images, as it avoids including unnecessary files that do not contribute to the functionality of the container. Additionally, excluding irrelevant files enhances security by preventing unwanted or sensitive files from being inadvertently included in the Docker image.

The vendor folder in the FibScale project contains all the library dependencies that the project requires. These libraries are installed based on the definitions in the project’s Gemfile file and can include a vast number of files and folders, specific to the environment in which they were installed. Including this folder in a Docker image is not recommended due to the potential for compatibility issues across different environments and the significant increase in the image size, which can lead to slower and less efficient deployments.

The __pycache__ contains a cache of compiled Python files that were automatically created when you first executed the load testing scenario with Locust. It exists to speed up future executions. Similarly to the dependencies in vendor, it may contain bytecode that is incompatible with systems other than your machine (or server) and should therefore not be included in the Docker daemon’s context.

The .dockerignore file is generally a superset of the .gitignore file. In other words, it will ignore the same files as the .gitignore files as well as other additional files that are not relevant to a Docker build. In the case of FibScale, for example, you might ignore the spec folder which contains automated tests that are important during development but completely irrelevant to building the project’s Docker image.

Would you like to know more?

😎 Outstanding! 📚 Always tell me more!

😵‍💫 Stop telling me more...

Create a Dockerfile

To build a Docker image, you need to create a file named “Dockerfile” at the root of the project, so go ahead and do that.

You will now need to add several instructions to this file to define how the image should be built. In other words, you will write the recipe for your Docker image.

More information

Do not hesitate to use the Dockerfile reference for more information about each instruction.

Choose a base image

The first step when building an image is to choose a base image. A base image in a Dockerfile serves as the foundational layer upon which all other layers of a Docker container are built. It typically includes the operating system and essential system libraries, providing the basic environment and tools necessary for running applications and services within the container.

FibScale’s requirements are simply the Ruby language, version 3.2 or more recent (and Bundler, Ruby’s package manager, but it generally comes packaged together with Ruby).

Explore the Docker Hub to find a base image fulfilling this requirement. We recommend only using official Docker images.

Given this information, insert the FROM instruction followed by the base image you chose at the top of your Dockerfile.

Tip

Using a base image in Docker without specifying a tag, like awesome (or awesome:latest which is equivalent), can lead to unpredictable behaviors, as it always pulls the latest version, which may introduce breaking changes or incompatibilities.

In contrast, specifying a tag like awesome:4.2-alpine ensures consistency and reliability: it uses a specific version (4.2 in this example) based on the lightweight and secure Alpine Linux distribution. This approach not only provides a stable and predictable environment but also results in a smaller and more efficient Docker image, benefiting from Alpine’s minimalistic footprint.

Create a group and user

By default, Docker containers run with root privileges (UID 0), including the application that runs inside them. This is considered a significant security risk because it grants full administrative privileges inside the container.

If an attacker gains access to the container, they could exploit these elevated privileges to perform malicious activities, such as accessing sensitive data, installing unauthorized software, or attacking other parts of the system. This is particularly dangerous because the effects can potentially extend beyond the container, especially if the container runtime is not properly isolated or if there are vulnerabilities in the host system. To mitigate this risk, it’s best practice to run containers with a non-root user, thereby limiting the potential impact of a security breach.

Would you like to know more?

🚀 Wonderful! 📚 Always tell me more!

😵‍💫 Stop telling me more...

The next step in your Dockerfile will be to create a new user and group that cannot access the rest of the system.

Here are the Linux commands to create a group and user depending on which base image you chose:

# Debian/Ubuntu (often the default base for Docker images when not specified)
$> groupadd --system fibscale
$> useradd --create-home --gid fibscale --system fibscale

# Alpine Linux
$> addgroup --system fibscale
$> adduser --system --ingroup fibscale fibscale

These commands do two things:

• The first command creates a new group named fibscale, with the --system flag indicating it’s a system group (i.e. not a human user).
• The second command creates a new user named fibscale, adds them to the fibscale group with --gid fibscale or --ingroup fibscale, and marks them as a system user with the --system flag.

Given this information, insert the necessary RUN instructions into your Dockerfile.

Create a working directory

It’s a good idea to define a dedicated workspace within the container for our app. It avoids the need for repetitive cd (change directory) commands and reduces the risk of file misplacement or path errors, ensuring that all operations are performed in the intended directory, thus making the Dockerfile more organized and error-resistant.

You can create this workspace by adding the following line to your Dockerfile:

WORKDIR /fibscale

The WORKDIR instruction in a Dockerfile is used to set the working directory for any subsequent RUN, CMD, ENTRYPOINT, COPY, and ADD instructions in the Dockerfile.

Copy files to the working directory and change permissions

At this point, you have a base image, a new user and a working directory. However, none of the application’s files are actually anywhere in the image. Let’s do that now by using the COPY instruction.

The COPY instruction follows the syntax COPY <source> <destination>. Here, <source> refers to the file(s) or directory(s) you want to copy from the Docker build context (the directory containing the Dockerfile and other resources), and <destination> is the path within the container where these files should be placed.

You can also use the optional --chown=<user>:<group> flag to set the ownership of the copied files at the same time.

To copy everything in the project’s folder (excluding the patterns specified in the .dockerignore file) to the working directory with the correct ownership, add the following line to your Dockerfile:

COPY --chown=fibscale:fibscale ./ ./

Tip

The first ./ in the command refers to the current directory on the host machine (the build context). This will be the directory where your Dockerfile is located. The second ./ refers to the current directory inside the container, which will be the working directory set by the WORKDIR instruction by default.

Just one more thing: the directory created by the WORKDIR instructions belongs to the root user by default, so you need to change its ownership to the fibscale user you created earlier.

In a standard Linux environment, we would do this by running the following command, assuming we were in the correct directory:

$> chown fibscale:fibscale .

Add the necessary RUN instruction to your Dockerfile to change the ownership of the working directory.

Install build tools

Before installing the application’s dependencies, you will need to install some build tools depending on the base image you chose. Here are the commands to run depending on which base image you chose:

# Debian/Ubuntu (often the default base for Docker images when not specified)
$> apt-get update
$> apt-get install -y g++ make patch

# Alpine Linux
$> apk add --no-cache g++ make patch

Add the necessary RUN instruction(s) to your Dockerfile to install these build tools.

Why is this necessary, you ask? FibScale is a Ruby application which has a number of libraries as dependencies, defined in its Gemfile. Most of the time, Ruby libraries are written in (shock!) Ruby itself, which means they can be installed without any additional tools. However, some dependencies may include native extensions: pieces of code written in lower-level languages like C or C++ for greater speed or lower memory footprint.

These extensions need to be compiled into machine code to work correctly. This is why we install g++ (the GNU C++ compiler), make (the one build automation tool to rule them all), and patch (a tool to apply changes to files). Without these tools, the installation of certain gems will fail, causing the build of the Docker image to fail.

Would you like to know more?

😎 Cool! 📚 Always tell me more!

😵‍💫 Stop telling me more...

Switch user

Up to this point in our Docker environment, we have created a user named fibscale, yet all operations have been executed with root privileges. While using the root user is fine for initial configuration tasks, it’s essential to shift to the fibscale user when we start working with our application files, in order to reduce privileges and thus enhance security.

To make this transition, add a USER instruction to your Dockerfile.

This instruction changes the user context, meaning that all subsequent RUN, CMD, ENTRYPOINT, and COPY instructions in the Dockerfile will be executed under the user you specify rather than root.

Install dependencies

You may then install the application’s dependencies (as documented in the README) with the following line in your Dockerfile:

RUN bundle install

Launch the application

The last step in your Dockerfile will be to determine the command executed when running the container. This is done using the CMD instruction, which there can only be one of.

In this exercise, you are launching the FibScale application. The command to run it is documented in the README.

Add the necessary CMD instruction to your Dockerfile.

Tip

The CMD instruction can be specified in two formats:

• The exec form: CMD ["command", "param1", "param2"] (preferred)
• The shell form: CMD command param1 param2

Build and run the image

Your Dockerfile should now be ready to be built. To do so, navigate to your project directory in the command line and start the building process:

$> cd /path/to/fibscale
$> docker build -t fibscale .

Let’s break down the second command:

1. docker build: This is the Docker subcommand used to build an image from a Dockerfile and a “context”. The build context is typically a set of files at a specified location, which are required for building the image.
2. -t fibscale: The -t (or --tag) flag stands for “tag”. It allows you to assign a name to the image you’re creating. In this case, the name (or tag) you’re giving to your new Docker image is fibscale. Naming images is crucial for identification and later use, especially when you want to run or push the image to a registry.
3. .: The dot at the end of the command represents the current directory, indicating that Docker should look for the Dockerfile in the current directory. This current directory also becomes the build context sent to the Docker daemon. It means Docker includes the files and folders in this directory (except those specified in .dockerignore, if present) to build the image.

If the build succeeds, you should see it in your list of available images by running:

$> docker images
REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
fibscale      latest    44bdf838bf5b   2 minutes ago   599MB

You can now run the image by running:

$> docker run fibscale

I, [2025-12-11T21:49:34 #1]  INFO -- : Worker: 0 (color: success)
I, [2025-12-11T21:49:34 #1]  INFO -- : Max number: 10000 (recursive: 40)
I, [2025-12-11T21:49:34 #1]  INFO -- : Default delay: 0.0
== Sinatra (v4.2.1) has taken the stage on 3000
   for production with backup from Puma
Puma starting in single mode...
* Puma version: 7.1.0 ("Neon Witch")
* Ruby version: ruby 3.4.7 (2025-10-08 revision 7a5688e2a2)
*  Min threads: 1
*  Max threads: 1
*  Environment: development
*          PID: 1
* Listening on http://0.0.0.0:3000
Use Ctrl-C to stop

Beautiful! It looks like the FibScale application is up and running in our container. Let’s try to visit the website by opening http://localhost:3000 in our browser.

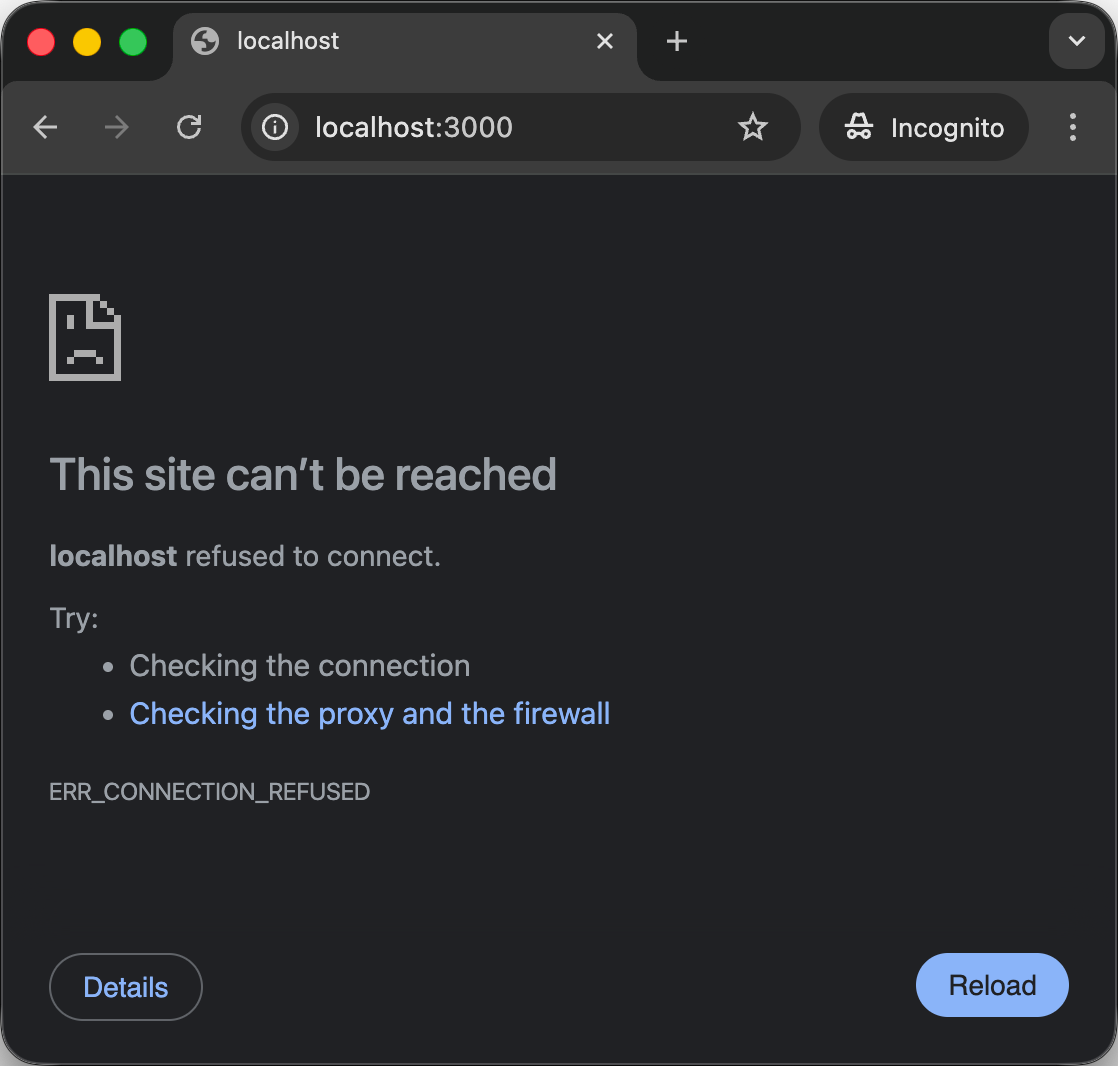

Sadly… 😭

Pause and think about what could possibly be wrong. 🤔

Map your container’s ports

When you run a Docker container, it operates in its own isolated network environment. This means that services running inside the container, such the FibScale application, aren’t automatically accessible outside of it. To make your application accessible from your host machine (or outside the container’s network), you need to map the container’s ports to your host machine’s ports. This is where the -p or --publish flag in the docker run command becomes essential.

The FibScale application inside your container is set to listen on port 3000. However, this port is only exposed within the container’s private network. To access your application from a web browser on your host machine, you must map the container’s port 3000 to a port on your host machine. For example, if you want to access the application via port 8080 on your local machine, you would start the container with the following command:

$> docker run -p 8080:3000 fibscale

Here, -p 8080:3000 instructs Docker to forward traffic coming into port 8080 of your host machine to port 3000 in the container. As a result, when you navigate to http://localhost:8080 in your browser, Docker routes these requests to port 3000 in the container, where FibScale is listening.

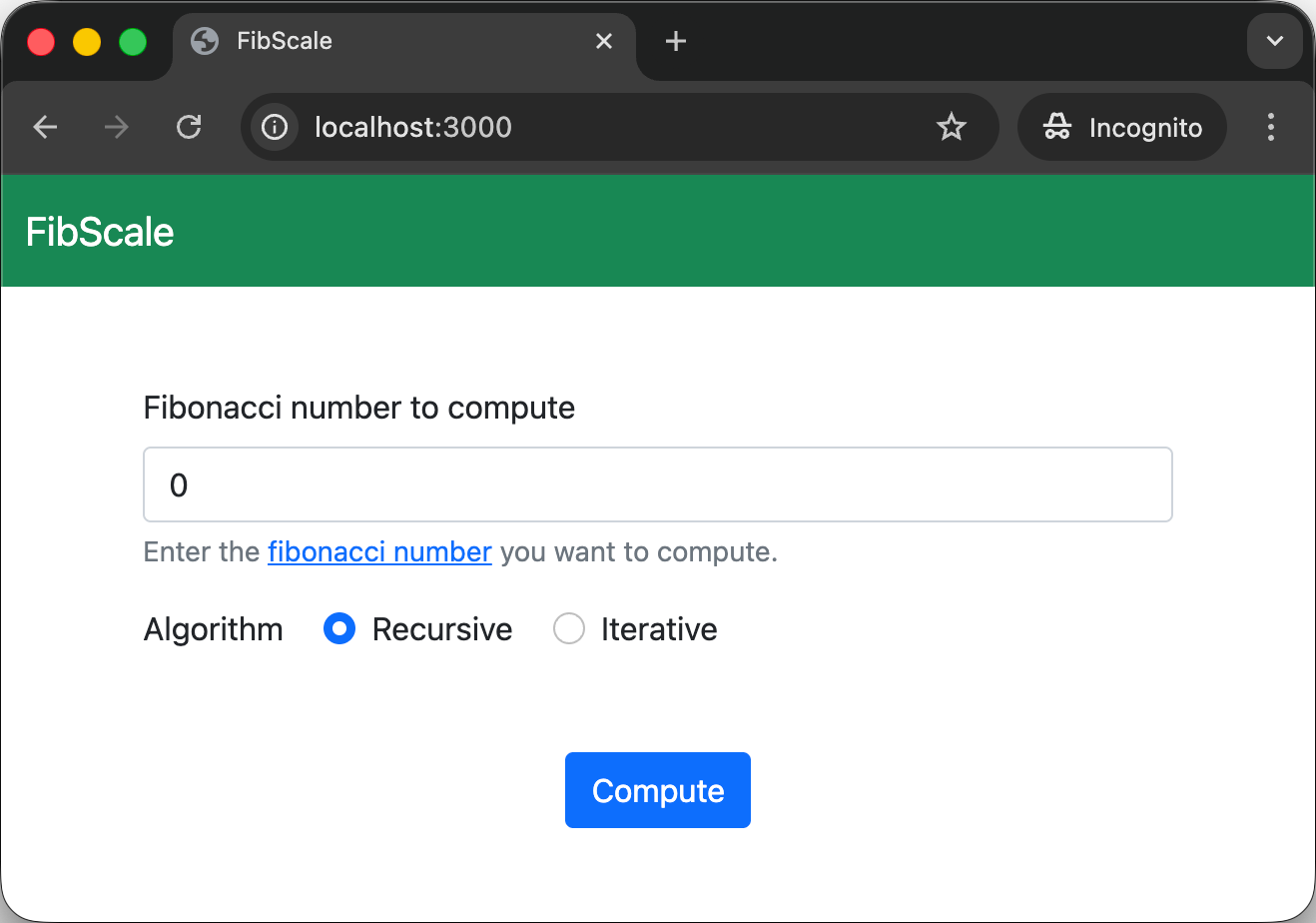

Success! 🎉

This port mapping is crucial for web development and testing with Docker, as it bridges the gap between the isolated container environment and your accessible host network, allowing you to interact with your web application as if it were running natively on your local machine. Remember, port numbers on both sides of the colon can be changed based on your needs and the availability of ports on your system.

For clarity and best practice, it’s advisable to specify in your Dockerfile which ports the container is expected to use, by incorporating the EXPOSE instruction. While this instruction doesn’t actually open or map any ports, it serves as an important form of documentation. It informs anyone using the image about the ports that the application within the container is set to listen on. This helps users understand how to interact with the containerized application and can guide them in setting up proper port mappings when they run the container.

Would you like to know more?

🎉 Cool! 📚 Always tell me more!

😵‍💫 Stop telling me more...

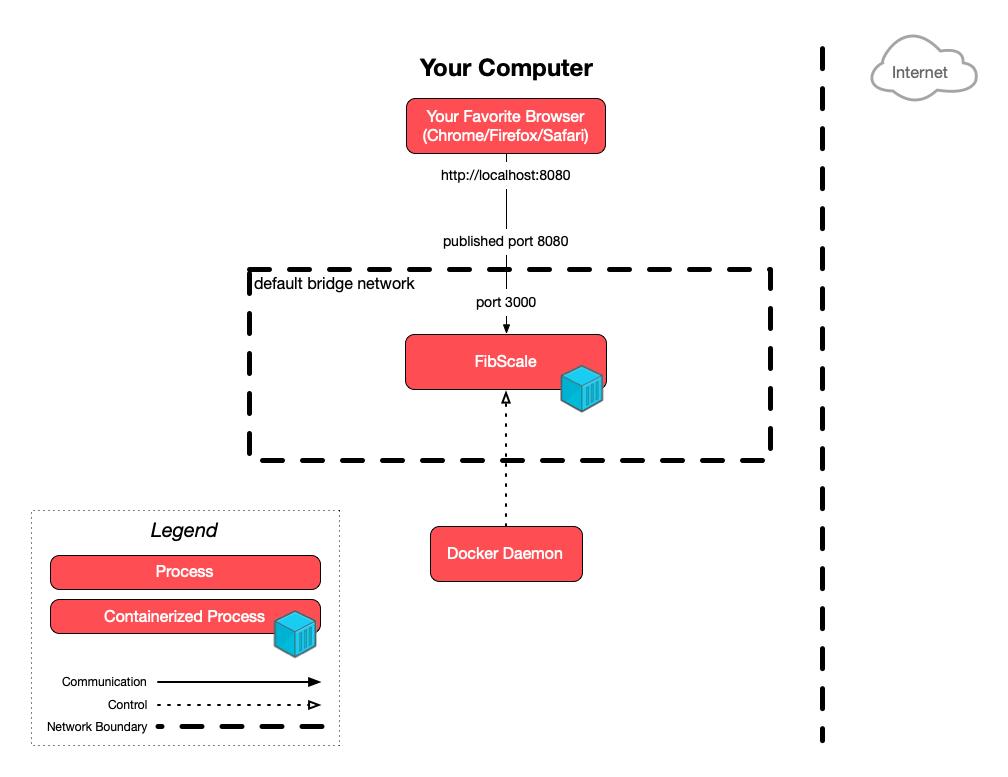

Local architecture

This is a simplified architecture of the main running processes and communication flow you have set up in this exercise so far:

Commit your changes

Finally, don’t forget to commit your changes to your Git repository for posterity:

$> git add .
$> git commit -m "Containerize FibScale with Docker"
$> git push origin main

Run the recipe on your cloud server

Now that your Dockerfile is ready and committed to your Git repository, it’s time to run it on your cloud server, and to see how easy it is to deploy your containerized application anywhere Docker is installed!

Install Docker on the server

Follow the official instructions to install Docker on Ubuntu on your cloud server.

Clone your repository on the server

Then clone your new repository on your server:

$> git clone https://github.com/<YourGitHubUser>/fibscale.git fibscale-docker

Build the Docker image on the server

You can now build your Docker image on the server by running the same command as before:

$> cd fibscale-docker
$> docker build -t fibscale .

Run the containerized FibScale application on the server

Finally, run your containerized FibScale application by running:

$> docker run -d -p 3001:3000 fibscale

Tip

For the first port of the -p option, you need to use a port that is publicly accessible and not already in use on your cloud server. In this example, we are using port 3001, which is one of the two ports we asked that you open when you set up your cloud server.

If neither port is available, you can use another like 3002, but make sure to open that port in your cloud server’s firewall settings. Alternatively, you could stop whatever service is using port 3001 to free it (as long as it’s not your delivery for the graded exercise).

The second port of the -p option is the port FibScale listens on within the container, which is 3000.

You should now be able to access your FibScale application by visiting http://jde.archidep.ch:3001 in your web browser!

Tip

Replace jde with your username and archidep.ch with your assigned domain.

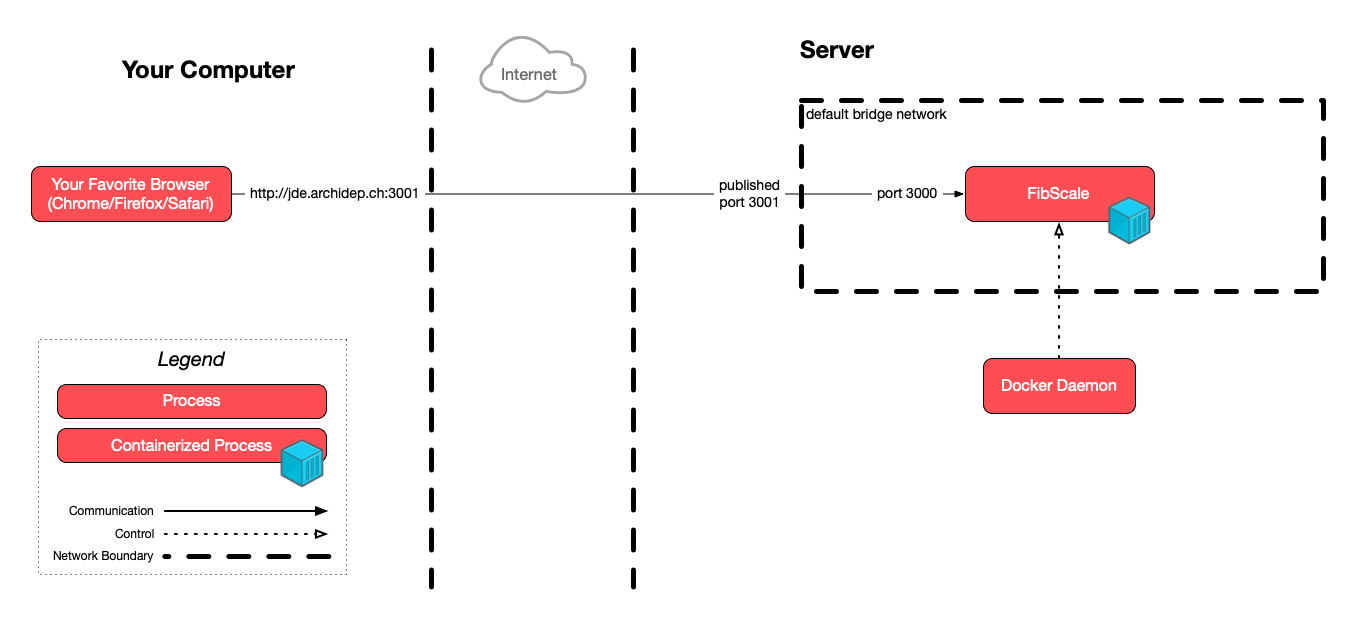

Server architecture

This is a simplified architecture of the main running processes and communication flow you have set up on your cloud server in this exercise:

What have I done?

Through this exercise, you’ve taken a web application written in Ruby and transformed it into a containerized application, harnessing the power and flexibility of Docker.

You started by setting up your environment, creating a .dockerignore file to optimize the build process, and crafting a Dockerfile from a carefully chosen base image.

You’ve learned the importance of security by running the container as a non-root user, and you’ve mastered the intricacies of setting up a working directory, copying project files, and managing file permissions within the Docker environment.

Launching FibScale inside the container and making it accessible via port mapping were critical steps that brought your application to life.

Finally, you have replicated the deployment of your containerized application on a cloud server, demonstrating the portability and ease of deployment that Docker offers.
