Hello GitHub

Legend

Parts of this exercise are annotated with the following icons:

• A task you MUST perform to complete the exercise
• An optional step that you may perform to make sure that everything is working correctly, or to set up additional tools that are not required but can help you
• The end of the exercise
• The architecture of the software you ran or deployed during this exercise.
• Troubleshooting tips: how to fix common problems you might encounter

You will need

• Git
• A free GitHub account
• A Unix CLI

Recommended reading

• Version control with Git
• Git branching
• Collaborating with Git

Going further

• Git Branching - Remote Branches
• Distributed Git

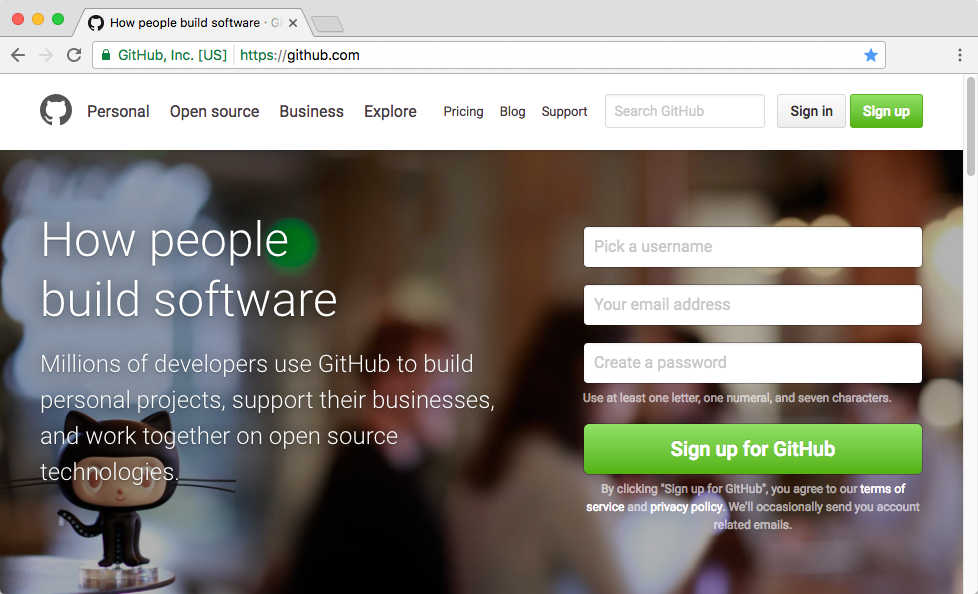

Create a free GitHub account

Both group members should register on GitHub:

Check your SSH key

To push code to GitHub, you will need to authenticate yourself. There are two methods of authentication: HTTPS username/password or SSH keys. We will use an SSH key in this course. You can check if you have one already with this command:

$> ls ~/.ssh
id_ed25519  id_ed25519.pub

If you see these files, then you already have an SSH key pair (id_ed25519 is the private key, id_ed25519.pub is the public key, or it might be id_rsa and id_rsa.pub for older SSH clients).

Tip

Using an SSH key arguably simplifies authentication. If you don’t have a password on your private SSH key, you won’t have to enter one when you use Git over SSH either. If you have a password, you should already have learned to use an SSH agent to avoid having to enter your password every time. Git will also use the agent to authenticate.

Create an SSH key

If you don’t have a key yet (or see a “No such file or directory” error), use the ssh-keygen command to generate a new key pair (press Enter at every prompt to keep the defaults):

$> ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/home/.ssh/id_ed25519):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/.ssh/id_ed25519.
Your public key has been saved in /home/.ssh/id_ed25519.pub.
The key fingerprint is:
SHA256:ULmjUQDN4Snkh0s9u093mcva4cI94cDk name@host

Tip

Read SSH Key Protection again as a reminder on whether or not to set a passphrase.

Copy the SSH key

To authenticate using your SSH key on GitHub, you will need to copy your public key. You can display it on the CLI with this command:

$> cat ~/.ssh/id_ed25519.pub
ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIB1TC4yqQYmOARxMMks71fUduU1Og+i name@host

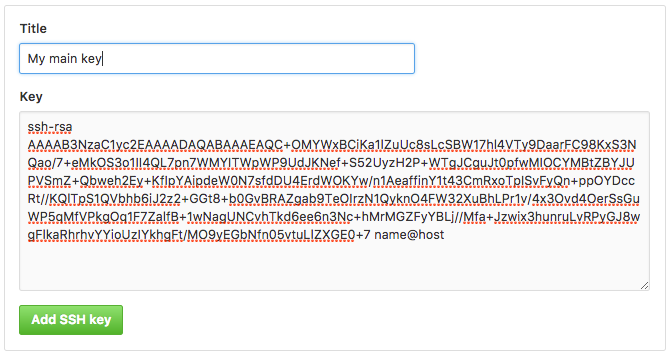

Add the SSH key to your GitHub account

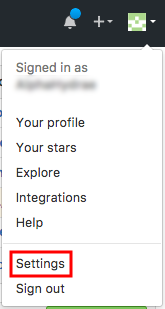

On GitHub, find the SSH and GPG keys section of your account settings.

Share changes

Let’s start sharing stuff by pushing, cloning and pulling.

Bob: clone the starting state

If Bob has performed the calculator exercise, he should continue from that repository. Otherwise, he should clone the Hello GitHub exercise repository as a clean starting state:

$> git clone https://github.com/ArchiDep/hello-github-ex.git

Then move into the repository and delete the remote:

$> cd hello-github-ex
$> git remote rm origin

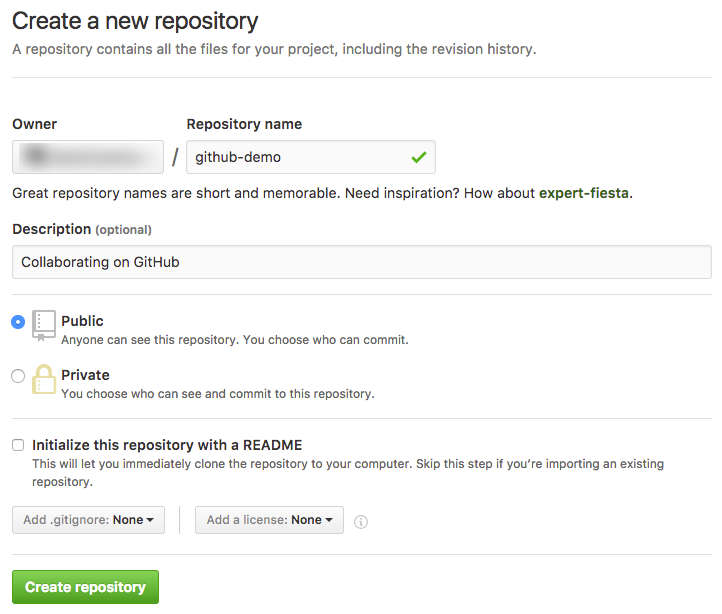

Bob: create a repository on GitHub

Bob should create a repository from the GitHub menu:

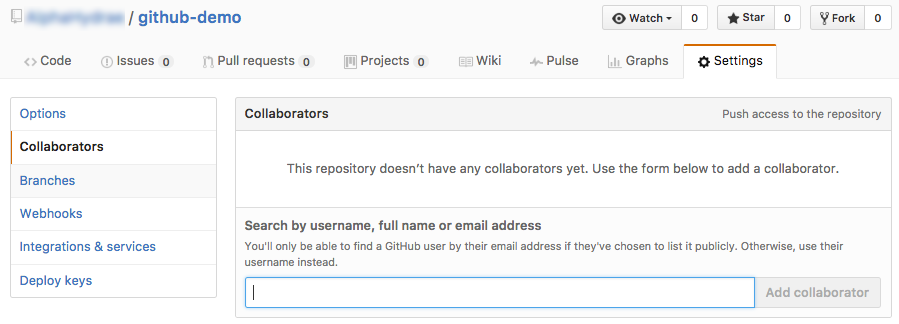

Bob: add Alice as a collaborator

For this tutorial, both team members will need push access to the repository. Bob should go to the repository’s collaborator settings, and add the GitHub username of Alice as a collaborator:

Alice must then accept the invitation sent by e-mail for the change to be effective.

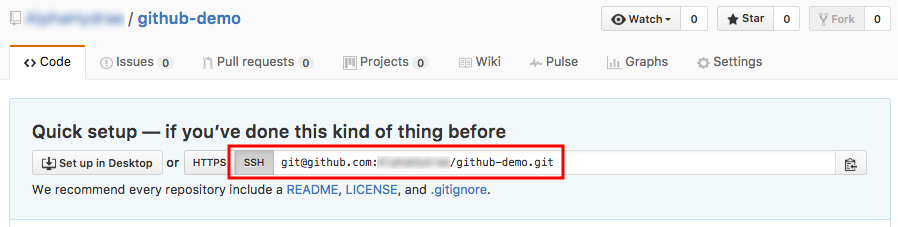

Bob: copy the remote SSH URL

Bob should copy the SSH URL of the GitHub repository:

Bob: add the remote to your local repository

Bob should move into his local repository and add the GitHub repository as a remote:

$> cd /path/to/projects/git-branching-or-hello-github-ex

$> git remote add origin git@github.com:bob/github-demo.git

More information

It’s a convention to name the default remote origin.

You can check what remotes are available with git remote:

$> git remote -v
origin  git@github.com:bob/github-demo.git (fetch)
origin  git@github.com:bob/github-demo.git (push)

More information

The -v (verbose) option makes the git remote command display more information. Without it, the URLs are not shown.

Bob: push your commits to the shared repository

It’s time for Bob to put the code in the shared GitHub repository. This is done using the git push command:

$> git push -u origin main
Counting objects: 35, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (33/33), done.
Writing objects: 100% (35/35), 4.16 KiB | 0 bytes/s, done.
Total 35 (delta 14), reused 11 (delta 2)
remote: Resolving deltas: 100% (14/14), done.
To github.com:bob/github-demo.git
 * [new branch]      main -> main

The command git push <remote> <branch> tells Git to push the commit pointed to by <branch> to the remote named <remote>.

The -u option (or --set-upstream) tells Git to remember that you have linked this branch to that remote.

Bob: remote branches

The commit objects and file snapshots have been pushed (or uploaded) to the GitHub repository. This includes not only the commit pointed to by main, but also the entire history of the repository up to that commit.

Note the origin/main branch that has appeared in your local repository. This is a remote-tracking branch. It tells you where the main branch points to on the origin remote (the GitHub repository in this case).

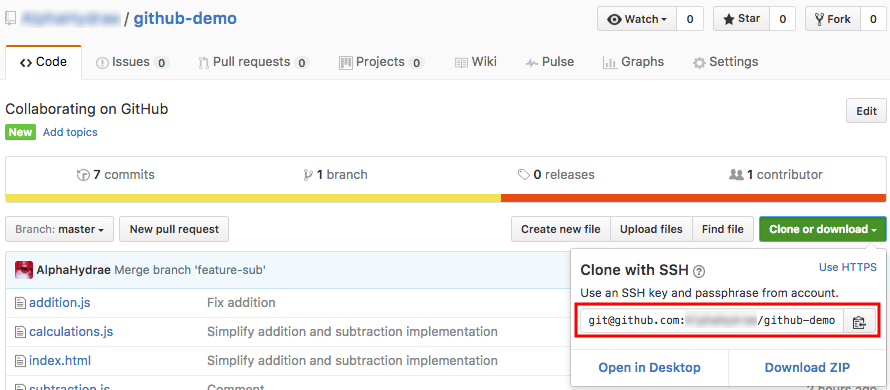

Alice: get the remote repository’s SSH URL

Alice can now go to the repository’s page on GitHub (under Bob’s account) and copy the SSH URL:

Alice: clone the shared repository

Alice can now get a copy of the shared GitHub repository on her machine. This is done using the git clone command:

$> git clone git@github.com:bob/github-demo.git
Cloning into 'github-demo'...
remote: Counting objects: 35, done.
remote: Compressing objects: 100% (21/21), done.
remote: Total 35 (delta 14), reused 35 (delta 14), pack-reused 0
Receiving objects: 100% (35/35), 4.16 KiB | 0 bytes/s, done.
Resolving deltas: 100% (14/14), done.

$> cd github-demo

The git clone [url] command copies the remote repository to your machine.

Alice: remote branches

The entire history of the project is pulled (or downloaded) from the GitHub repository. Git will also automatically switch to the main branch in the working directory so you have something to work from.

Again, Git has created a remote-tracking branch in Alice’s repository, so that you can know what the current state of the remote is.

Alice: make local changes

Alice thinks that the project’s file names are too long. Let’s fix that:

$> mv addition.js add.js
$> mv subtraction.js sub.js
$> git add .
$> git commit -m "Shorter file names"

Alice: check the state of branches

This is now the state of the shared repository and Alice’s local repository.

There is a new commit in Alice’s repository that is not in the shared GitHub repository.

Alice: push to the shared repository

Push to update the shared repository:

$> git push origin main

Bob: check the state of branches

This is now the state from Bob’s perspective.

Note that the new commit is in the shared repository (on GitHub) but that the remote-tracking branch origin/main is not up-to-date in Bob’s repository.

Git does not automatically synchronize repositories. As far as Bob knows looking at information from his local repository, the main branch still points to 4f94ba in the shared repository.

Bob: fetch changes from the shared repository

Bob should now get the changes from the shared repository:

$> git fetch origin
remote: Counting objects: 2, done.
remote: Compressing objects: 100% (1/1), done.
remote: Total 2 (delta 1), reused 2 (delta 1), pack-reused 0
Unpacking objects: 100% (2/2), done.
From github.com:bob/github-demo
   4f94ba..92fb8c  main     -> origin/main

The new commit is now here and the remote-tracking branch has been updated.

However, the local main branch has not moved and the working directory has not been updated.

Bob: merge fetched changes

Now you can use git merge like in the previous tutorial to bring the changes of origin/main into main:

$> git merge origin/main
Updating 4f94ga..92fb8c
Fast-forward
 addition.js => add.js | 0
 1 file changed, 0 insertions(+), 0 deletions(-)
 rename addition.js => add.js (100%)

As expected, main has been fast-forwarded to the commit pointed to by origin/main and the working directory has been updated.

Bob’s repository is now up-to-date.

Tip

You can also use git pull [remote] [branch] to save time.

The following command:

$> git pull origin main

Is equivalent to running the two commands we just used:

$> git fetch origin
$> git merge origin/main

Managing conflicting commit histories

Let’s create and fix a conflict.

Bob: fix the bug

Bob now notices that the last change breaks the calculator. This is because the files were renamed, but the <script> tags in index.html were not updated. Fix that bug, then commit and push the change:

(Make the fix...)
$> git add index.html
$> git commit -m "Fix bad <script> tags"
$> git push origin main

Alice: make other changes

Alice, not having noticed the bug, proceeds to make 2 changes on index.html:

• Add an <h2> title before each computation.
• Add the defer attribute to the three <script> tags at the bottom to speed up page loading.

<h2>Addition</h2>
<p id="addition">...</p>

<h2>Subtraction</h2>
<p id="subtraction">...</p>

<script src="calculations.js" defer></script>
<script src="addition.js" defer></script>
<script src="subtraction.js" defer></script>

Alice: push the other changes

Commit and then push the changes:

$> git add index.html
$> git commit -m "Improve layout"

$> git push origin main

Rejected pushes

The push was rejected by the remote repository. Why?

To github.com:bob/github-demo.git
 ! [rejected]        main -> main (fetch first)
error: failed to push some refs to 'git@github.com:bob/github-demo.git'
hint: Updates were rejected because the remote contains work that you do
hint: not have locally. This is usually caused by another repository pushing
hint: to the same ref. You may want to first integrate the remote changes
hint: (e.g., 'git pull ...') before pushing again.
hint: See the 'Note about fast-forwards' in 'git push --help' for details.

This is the state of Alice’s repository right now, compared to the state of shared repository:

Alice: fetch the changes

Since Git tells Alice that the local copy of the remote repository is out of date, try fetching those changes:

$> git fetch origin

Alice: try to push again

The push is rejected again! Why?

$> git push origin main
To github.com:bob/github-demo.git
 ! [rejected]        main -> main (non-fast forward)
error: failed to push some refs to 'git@github.com:bob/github-demo.git'
hint: Updates were rejected because the tip of your current branch is behind
hint: its remote counterpart. Integrate the remote changes (e.g.
hint: 'git pull ...') before pushing again.
hint: See the 'Note about fast-forwards' in 'git push --help' for details.

This is the state of Alice’s and the shared repository right now:

Divergent history

The conflict occurred for the same reason as in the previous tutorial: Bob and Alice’s work have diverged from a common ancestor (92fb8c in this example).

A remote repository will only accept fast-forward pushes by default.

Alice: pull changes from the shared repository

Alice wants to fetch and merge the changes made by Bob. Let’s use the git pull command:

$> git pull origin main
remote: Counting objects: 3, done.
remote: Compressing objects: 100% (2/2), done.
remote: Total 3 (delta 1), reused 3 (delta 1), pack-reused 0
Unpacking objects: 100% (3/3), done.
From github.com:bob/github-demo
 * branch            main     -> FETCH_HEAD
   92fb8c..3ff531    main     -> origin/main
Auto-merging index.html
CONFLICT (content): Merge conflict in index.html
Automatic merge failed; fix conflicts and then commit the result.

Troubleshooting

If the git pull command fails with a warning about reconciling divergent branches, see the troubleshooting tip about configure Git’s merge behavior.

The fetch succeeded, but the merge failed because of a conflict on index.html.

Tip

As we’ve seen before, a pull is equivalent to a fetch followed by a merge.

Alice: check the conflict markers

Alice should take a look at index.html:

<<<<<<< HEAD
    <script src="calculations.js" defer></script>
    <script src="addition.js" defer></script>
    <script src="subtraction.js" defer></script>
=======
    <script src="calculations.js"></script>
    <script src="add.js"></script>
    <script src="sub.js"></script>
>>>>>>> 3ff5311406e73c7d2cc1691f9535214c2543937f

Let’s combine the fix of renaming the files and the defer change, and remove the conflict markers:

    <script src="calculations.js" defer></script>
    <script src="add.js" defer></script>
    <script src="sub.js" defer></script>

Mark the conflict as resolved and finish the merge:

$> git add index.html
$> git commit -m "Merge origin/main"

Alice: check the state of branches

Now the state of Alice’s local repository is consistent with the state of the shared repository: the commit pointed to by main is ahead of the commit pointed to by origin/main.

Alice: push the changes

The push will be accepted now:

$> git push origin main

Bob: pull the changes

Bob can now pull those latest changes to keep up-to-date:

$> git pull origin main

What have I done?

During this exercise, you have learned how to collaborate using Git and GitHub. You’ve practiced creating repositories, making commits, pushing and pulling changes. You’ve also explored how to contribute to projects, review changes, and resolve merge conflicts, gaining hands-on experience with essential tools for team-based software development.

Troubleshooting

Here’s a few tips about some problems you may encounter during this exercise.

Alice’s git pull command fails with a warning

If you see a warning that looks like this the first time you try to use git pull:

$> git pull origin main
hint: You have divergent branches and need to specify how to reconcile them.
hint: You can do so by running one of the following commands sometime before
hint: your next pull:
hint:
hint:   git config pull.rebase false  # merge
hint:   git config pull.rebase true   # rebase
hint:   git config pull.ff only       # fast-forward only
hint:
hint: You can replace "git config" with "git config --global" to set a default
hint: preference for all repositories. You can also pass --rebase, --no-rebase,
hint: or --ff-only on the command line to override the configured default per
hint: invocation.
fatal: ...

It’s because Git used to define some behaviors by default, like whether to create a merge commit when merging divergent branches, but you now have to specify which behavior you prefer.

You can solve this issue by running the following command once on your machine:

git config --global pull.rebase false

This will configure Git to always create a merge commit when merging divergent branches, which used to be the default and is what most people do.

More information

With the --global option, this setting will be saved in your global ~/.gitconfig file, and you won’t have to do the same thing for other repositories on your machine.

You can then re-run your pull command, which should work this time.
