Unix Basics

File system

The file system controls how data is stored and retrieved. Without it, information on a storage medium such as a hard drive would be one large body of data, with no way to tell where one piece of information stops and the next begins.

Various file systems exist:

Case-sensitivity

One of the differences between file systems is how they would treat these file names:

• a-file.txt
• A-file.txt
• A-fIlE.txt
• A-FILE.txt

When you use macOS or Windows, your file system is probably HFS, APFS or NTFS. These file systems are case-insensitive, meaning that the four file names above represent the same file. You cannot create both a-file.txt and A-FILE.txt in the same directory. As far as the file system is concerned, that’s the same file.

When you use Linux, your file system is probably in the Extended File System (ext) family. It is a case-sensitive file system. The four names above represent 4 different files.

It is important to know this difference when you are transferring files between different file systems.

File hierarchy

In Unix systems, the file system is said to be rooted, meaning that there is always one root, denoted by the path /.

Separate volumes such as disk partitions, removable media and network shares belong to the same file hierarchy (unlike Windows for example, where each drive has a letter that is the root of its file system tree).

Such volumes can be mounted on a directory (typically under /mnt), causing the volume’s file system tree to appear as that directory in the larger tree.

Inspecting volumes

The df (disk free) shows you all volumes and the available space on each of them (the -h option displays size in a human-readable format instead of the raw number of bytes):

$> df -h
Filesystem      Size  Used Avail Use% Mounted on
tmpfs            99M  608K   98M   1% /run
/dev/sda1       9.7G  1.4G  8.3G  15% /
tmpfs           493M     0  493M   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs           493M     0  493M   0% /sys/fs/cgroup
/dev/sdb1        50G   19G   28G  41% /mnt/network-drive

You can see that there is only one root (/), and that all other volumes are mounted somewhere in the file hierarchy.

For example, the last line represents a network drive mounted under the /mnt/network-drive directory.

Mounted volumes are defined in the /etc/fstab file (file systems table).

Common Unix directories

Many of these directories are common to all Unix systems.

Unix users

Like all modern operating systems, Unix operating systems like Linux are multi-user systems, meaning that more than one user can have access to the system at the same time.

A user is any entity that uses the system. This may be:

• A person, like Alice or Bob
• A system service, like a MySQL database or an SSH server

A Unix system maintains a list of user accounts representing these people and system services, each with a different name such as alice, bob or sshd. Each of these user accounts is also identified by a numerical user ID (or UID).

User access

Managing users is done for the purpose of security by limiting access in certain ways, such as file permissions.

The superuser, named root, has complete access to the system and its configuration. It is intended for administrative use only.

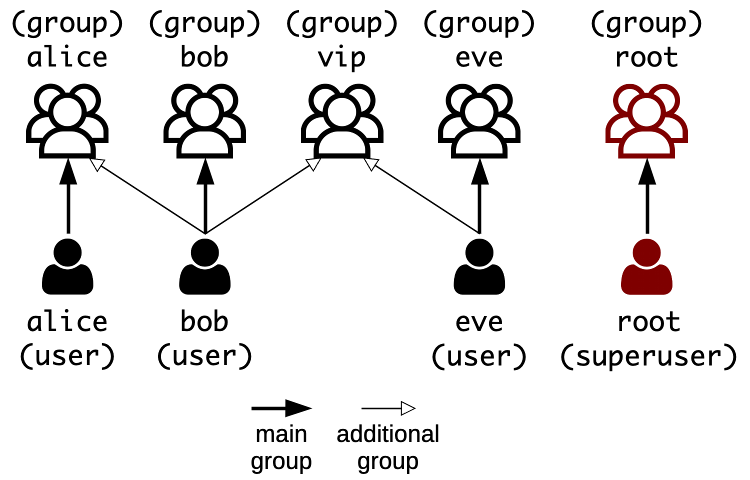

Unix also has the notion of groups. Much like a user account, a group is identified by a name and by a numerical group ID (or GID). Each user belongs to a main group, and can also be added to other groups, which grants that user all privileges assigned to each group.

A Unix system usually creates a main group for each user, with the same name as the user. For example, user alice has the alice group as its main group.

This provides a quick way of giving bob access to alice’s files by adding him to the alice group, if necessary.

Types of users

As we said at the beginning of this section, a user can be a login user representing a person or a system user generally representing a service.

You may wonder why we even need system users? In Unix systems, users are the fundamental access control mechanism, so we need system users to limit the permissions of people using the system, but also of services running on that system. For example:

• Alice should not be able to access Bob’s files without his permission, and vice-versa.
• A database server like MySQL needs to access some files for storage, but it doesn’t need to access Alice’s or Bob’s files. It also doesn’t need to be able to log in since it’s a service and not a person.

Difference between login and system users

There is no fundamental difference between a login and a system user. It’s simply an organizational distinction to make life easier for system administrators.

• Both login and system users are stored in the same user database files with the same format.
• A login user can log in because it has a password and a login shell.
• A system user has no password and no login shell and therefore cannot log in.
• A system user has a UID in a different range by default, typically under 1000. (This difference can be utilized by the GUI, for example to omit system users when populating a username dropdown list at login.)

Tip

You can even transform a login user into a system user and vice-versa through judicious use of the usermod command.

Managing users

Creating, modifying and deleting users and groups is done with commands such as useradd, usermod, passwd, userdel and groupadd. The System Administration Cheatsheet shows how to use them, including how to create a login user and a system user.

Administrative access

Many administrative tasks such as installing packages, managing users or changing file permissions can only be performed by the root user.

If you have the root user’s password (or an authorized public key), you can log in as root directly. But you should avoid it as often as possible.

It is dangerous to log in as root. One wrong move and you could irreversibly damage the system. For example:

• Delete a system-critical file or files
• Change permissions on system-critical executables
• Lock yourself out of the system (e.g. by disabling SSH on a server)

The sudo command

The sudo command (which means “superuser do”) offers another approach to give users administrative access.

When trusted users precede an administrative command with sudo, they are generally prompted for their own password. Once authenticated, the administrative command is executed as if by the root user.

$> ls -la /root
ls: cannot open directory '/root': Permission denied

$> sudo ls -la /root
[sudo] password for jde:
drwx------  4 root root 4096 Sep 12 14:53 .
drwxr-xr-x 24 root root 4096 Sep 12 14:44 ..
-rw-------  1 root root  137 Sep 11 09:51 .bash_history
-rw-r--r--  1 root root 3106 Apr  9 11:10 .bashrc
...

More information

Only trusted users can use sudo. Unauthorized usage will be reported. The relevant logs can be checked with sudo journalctl $(which sudo) (if you are a trusted user).

The sudoers file

The /etc/sudoers file defines which users are trusted to use sudo. This is a classic example (the basic syntax is described here):

Defaults        env_reset
Defaults        secure_path="/usr/local/sbin:/usr/local/bin:..."

root    ALL=(ALL:ALL) ALL
%admin  ALL=(ALL) ALL
%sudo   ALL=(ALL:ALL) ALL

This configuration allows members of the sudo group to execute any command (i.e. they are trusted users).

It’s also possible to allow a user or group to execute sudo without a password prompt, which is typically how many cloud providers configure their virtual servers. This is convenient, but it is less secure than requiring a password, and it is not recommended for production servers.

The su command

The su command (which means “switch user”) is also a common administrative tool. As its name indicates, it can be used to log in as another user. If you are a trusted sudoer, you can use it to become another user:

$> whoami
bob

$> ls -la /home/alice
ls: cannot open directory '/home/alice': Permission denied

$> sudo su -l alice
[sudo] password for bob:

$> whoami
alice

# When you're done, exit the shell to return to your previous user:
$> exit

$> whoami
bob

More information

The -l option of the su command makes sure you get a login shell, i.e. an environment similar to what you get when actually logging in. If you don’t use it, you will have a minimal shell environment that might be missing some things.

Performing administrative tasks as root

You can also use the su command to log in as root. You can perform any necessary administrative tasks without sudo (since you are root), then again go back to your previous shell with exit:

$> sudo su -l root

$> whoami
root

$> journalctl $(which sudo)
...

$> exit

$> whoami
bob

Permissions

Someone who logs in on a Unix system can use any file their user account is permitted to access. The system determines whether or not a user or group can access a file based on the permissions assigned to it.

There are three different permissions for files and directories. They are represented by one character:

The symbol - (a hyphen) represents no permission, indicating that the corresponding access is not granted.

User categories

Each of the three permissions are assigned to three different categories of users:

Checking file permissions

When you run the ls command with the -l option (long format), you can see more information about files, including their type and permissions:

$> ls -l
drwxr-xr-x 2 root root 4096 Sep  7 12:16 some-directory
-rwxr-x--- 1 root vip   755 Jan 18  2018 some-executable
-rw-r----- 1 bob  bob   321 Jan 18  2018 some-file
lrwxrwxrwx 1 bob  bob   39  Jan 18  2018 some-link -> some-file

Column 1 represents the permissions assigned to the file, while columns 3 and 4 represent their ownership (owner and group). The first 10-letter column can be separated into one letter for the type of file, and three 3-letter groups for owner, group and other permissions respectively:

TYPE  OWNER PERM  GROUP PERM  OTHER PERM  OWNER  GROUP
d     rwx         r-x         r-x         root   root  ... some-directory
-     rwx         r-x         ---         root   vip   ... some-executable
-     rw-         r--         ---         bob    bob   ... some-file
l     rwx         rwx         rwx         bob    bob   ... some-link -> some-file

Tip

The file types you will most often handle are - for files, d for directories and l for links. There are others like p for named pipes, s for sockets and b or c for block or character device files, but they are outside the scope of this course.

Permission management

The following commands can be used to change the permissions or ownership of files:

Use man <command> to read their manual, e.g. man chmod.

The chown command

The chown command is quite simple to use. The following command changes the owner of file.txt to alice:

$> sudo chown alice file.txt

The following command changes the owner of file.txt to bob and its group to vip:

$> sudo chown bob:vip file.txt

You can also recursively (with the -R option) change the owner and group of a directory and all its files:

$> sudo chown -R bob:bob /home/bob

The chmod command

The chmod command is used to change file permissions and is a little more complicated. It has two syntaxes to specify which permissions you want: symbolic mode and octal mode.

With symbolic mode, you specify which permissions you want with letters similar to those shown by ls -l, and you have more control over which specific permissions you want to add or remove:

$> sudo chmod ug+x script.sh
$> sudo chmod a-w readonly.txt
$> sudo chmod o-rwx secret.txt

With octal mode, you specify all of a file’s permissions at once. You cannot add or remove a specific permission without also setting the others:

$> sudo chmod 755 executable.sh
$> sudo chmod 640 secret.txt

Symbolic mode

The symbolic syntax of the chmod command is:

chmod [reference...][operator][permission...] file

Specify one or more references ([reference...]) to select user categories:

Use one of the available operators ([operator]):

Using symbolic mode

The symbolic syntax basically allows you to specify:

• What category or categories of users you want to change permissions for (u, g, o or a)
• What kind of change you want to do (+, - or =)
• What permission(s) you want to change (r for read, w for write or x for execution/traversal)

For example, the following command adds read and write permissions to u (the owner of the file):

$> sudo chmod u+rw file.txt

The following command sets the permissions for g (the group of the file) to read and execute:

$> sudo chmod g=rx file.txt

Bases: one number, several ways to write it

Octal mode writes permissions as numbers in base 8 (octal). The following chmod commands are equivalent:

$> sudo chmod 755 executable.sh
$> sudo chmod u=rwx,g=rx,o=rx executable.sh

To see why, remember that a base is only a way of writing a number.

In base 10, which we use every day, there are ten digits (0 to 9), and each position is worth ten times the position to its right:

So 755 means 7 × 100 + 5 × 10 + 5 × 1.

In base 2 (binary), there are only two digits, 0 and 1, and each position is worth twice the position to its right:

So binary 101 means 1 × 4 + 0 × 2 + 1 × 1, which is 5 in decimal.

In base 8 (octal), there are eight digits, 0 to 7, and each position is worth eight times the position to its right:

So in octal, 755 means 7 × 64 + 5 × 8 + 5 × 1, which is 493 in decimal.

The important thing to remember is that the representation of a number is not the same as the number itself. These are all the same number, just written in different representations:

• 493₁₀ (base 10, decimal notation)
• 755₈ (base 8, octal notation)
• 111101101₂ (base 2, binary notation)
• CDXCIII (Roman numerals)

Decimal notation is not “more correct” than octal or binary notation. It’s the one we learn and use every day because it’s intuitive to us humans with our 10 fingers. Computers don’t care, and for reasons that will become clear later, binary is a much better fit for computers than decimal.

Octal mode

So why does Unix use octal notation for file permissions?

Remember that we have 9 permissions: 3 (r, w, x) for each of the 3 categories of users (owner, group, others). Each permission is either on or off, which is a binary choice and can be represented as a bit (1 for on, 0 for off).

This means that for each category of users, there are 8 possible combinations of permissions (3 bits with 2 possibilities each = 2³ possibilities = 8):

So we could choose to represent the set of permissions for a file or a directory as 9 binary digits, or bits. For example, rwx r-x --- can be represented as 111 101 000 (in binary, with spaces added for clarity).

But 111101000 is a long string of digits, and it is not very easy to read or remember. It is much more convenient to represent the same permissions as 3 octal digits, 750, which is equivalent, since each octal digit is equivalent to 3 binary digits (1 octal digit also represents 8 possible values).

Using the table above, you can quickly translate 750 back into permission flags:

• 7 means rwx for the owner, i.e. the owner can read, write and execute/traverse;
• 5 means r-x for the group, i.e. the group can read and execute/traverse, but not write;
• 0 means --- for others, i.e. others have no access at all.

You can represent any other set of 9 permissions with 3 octal digits:

• 755 is equivalent to rwxr-xr-x.
• 751 is equivalent to rwxr-x--x.
• 640 is equivalent to rw-r-----.

That is why octal suits Unix permissions. It is simply a compact way of representing the 9 permission bits. If you ever use chmod regularly, you will get used to it and will be able to quickly translate between octal and symbolic modes.

Using octal mode

The octal syntax does not allow you to make a granular change to a specific permission (e.g. u+x). However, it does allow you to easily change an entire file’s permissions in one command.

For example, the following command sets permissions rwxr-xr-x to script.sh:

$> sudo chmod 755 script.sh

The following command sets permissions rw-r----- to secret.txt:

$> sudo chmod 640 secret.txt

References

• Red Hat Enterprise Linux - Introduction to System Administration
• Red Hat Enterprise Linux - Security Guide

Appendix: Unix file types

“Everything is a file.”

Unix systems have regular files and directories like most other systems. But in addition to these, it represents various other things as files:

Appendix: user database files

These files define what user accounts and groups are available on a Unix system:

You should never edit these files by hand.

Unix systems provide various system administration commands for this purpose, such as useradd, passwd and groupadd for Linux.

The /etc/passwd file

Each line in /etc/passwd defines a user account, with data separated by colons:

jde:x:500:500:jde:/home/jde:/bin/bash

• Username (jde) - The name of the user account (used to log in)
• Password (x) - User password (or x if it is stored in /etc/shadow)
• User ID (UID) (500) - The numerical equivalent of the username
• Group ID (GID) (500) - The numerical equivalent of the user’s primary group name (often the same as the UID for most users, on a Unix system with default settings)
• GECOS (jde) - Historical field used to store extra information (usually the user’s full name)
• Home directory (/home/jde) - Absolute path to the user’s home directory
• Shell (/bin/bash) - The program automatically launched whenever the user logs in (e.g. on a terminal or through SSH)

Tip

Changing the shell can be used to prevent some users, like system users, from logging in (e.g. by using /bin/false or /usr/sbin/nologin).

The /etc/group file

Each line in /etc/group defines a group, also colon-separated:

vip:x:512:bob,eve

• Group name (vip) - The name of the group
• Group password (x) - Optional group password (or x if the password is stored in /etc/gshadow); if specified, allows users not part of the group to join it with the correct password
• Group ID (GID) (512) - The numerical equivalent of the group name
• Member list (bob,eve) - A comma-separated list of the users belonging to the group

The shadow files

Both /etc/passwd and /etc/group must be readable by anyone on a Unix system, because they are used by many programs to perform the translation from username to UID and from group name to GID.

It is therefore bad practice to store passwords in these files, even encrypted or hashed. Any user might copy them and attempt a brute-force attack (which could be done on a separate, dedicated infrastructure).

Therefore, the corresponding shadow files exist:

• /etc/shadow stores password hashes for user accounts, and other security-related data such as password expiration dates.
• /etc/gshadow stores password hashes for groups, and other security-related data such as who is the group administrator.

These files are only readable by the root user (or any user that belongs to the root or shadow groups).

Appendix: welcome to the future

Some of the commands mentioned in this course are older than you, although they are regularly updated. But new command line tools are also being developed today:

• The duf command is a modern alternative to df to list free disk space, written in Rust, a modern systems programming language.

Appendix: of dolphins and humans

Still don’t believe that binary is “as correct” as decimal?

Read the following excerpts from a base conversion textbook by humans, and the same textbook written by English-speaking dolphins:

Both versions are just as valid from each perspective. Our hypothetical English-speaking dolphins just have a different representation of numbers than humans, and vice versa. A dolphin would undoubtedly understand the second textbook better than the first, and find it strange that humans have digits other than 0 and 1.
