Unix Processes

You will need

• A Unix CLI
• An Ubuntu server to connect to

Recommended reading

• Command Line Introduction
• Secure Shell (SSH)
• Unix Basics

What is a process?

A process is an instance of a computer program that is being executed.

This is a C program. A program is a passive collection of instructions stored on disk:

 #include <stdio.h>

int main()
{
   printf("Hello, World!");
   return 0;
}

A process is the actual execution of a program that has been loaded into memory:

Every time you run an executable file or an application, a process is created. Simple programs only need one process. More complex applications may launch other child processes for greater performance. For example, most modern browsers will run at least one child process per tab.

Unix processes

Processes work differently depending on the operating system. We will focus on processes in Unix systems, and these features in particular:

More information

These features have been standardized for Unix systems as the Portable Operating System Interface (POSIX).

Process ID

Let’s talk about how running processes are identified.

What is a process identifier?

Any process that is created in a Unix system is assigned an identifier (or PID). Each new process gets the next available PID. This ID can be used to reference the process.

PIDs are sometimes reused as processes die and are created again, but at any given time, a PID uniquely identifies a specific process.

More information

By default, the maximum PID on Linux systems is 32,768 on 32-bit systems, and 4,194,304 (~4 million) on 64-bit systems.

Parent processes

The process with PID 0 is the system process, also originally known as the swapper or scheduler. This is the most low-level process managed directly by the kernel.

One of the first thing it does is run the init process, which naturally gets PID 1 (the next available PID). The init process is responsible for initializing the system. Most other processes are either launched by the init process directly, or by one of its children.

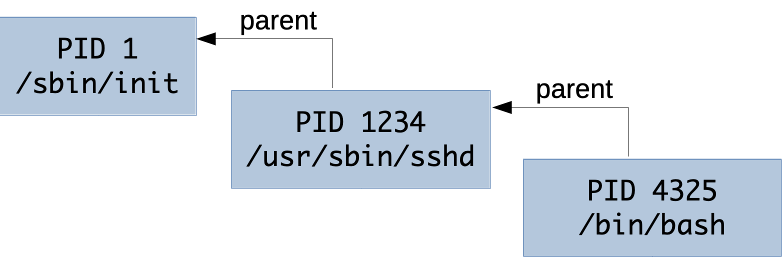

All processes retain a reference to the parent process that launched it. The ID of the parent process is commonly called PPID (parent process ID).

The ps command

The ps (process status) command displays currently-running processes:

$> ps
  PID TTY          TIME CMD
14926 pts/0    00:00:00 bash
14939 pts/0    00:00:00 ps

Tip

By default, it only lists your user’s processes that have a controlling terminal (TTY).

You can obtain more information with the -f (full format) option:

$> ps -f
UID       PID  PPID  C STIME TTY          TIME CMD
jde     15237 15158  1 17:48 pts/0    00:00:00 -bash
jde     15251 15237  0 17:48 pts/0    00:00:00 ps -f

Tip

We are mostly interested in the Process ID (PID), the parent Process ID (PPID) and of course the command (CMD) that is being run. But the others also provide useful information.

Listing all processes

Of course, there are more than 2 processes running on your computer. Add the -e (every) option to see all running processes. The list will be much longer. This is an abbreviated example:

$> ps -ef
UID       PID  PPID  C STIME TTY          TIME CMD
root        1     0  0 09:38 ?        00:00:30 /sbin/init
root        2     0  0 09:38 ?        00:00:30 [kthread]
...
root      402     1  0 09:39 ?        00:00:00 /lib/systemd/systemd-journald
syslog    912     1  0 09:39 ?        00:00:00 /usr/sbin/rsyslogd -n
root     1006     1  0 09:39 ?        00:00:00 /usr/sbin/cron -f
...
root     1700     1  0 Sep11 ?        00:00:00 /usr/sbin/sshd -D
jde      3350  1700  0 17:52 ?        00:00:00 sshd: jde@pts/0
jde      3378  3350  0 15:32 pts/0    00:00:00 -bash
jde      3567  3378  0 15:51 pts/0    00:00:00 ps -ef

Tip

Note that the command you just ran, ps -ef, is in the process list (at the bottom in this example). This is because it was running while it was listing the other processes.

Process tree

On some Linux distributions like Ubuntu, the ps command also accepts a --forest option which visually shows the relationship between processes and their parent:

$> ps -ef --forest
UID       PID  PPID  C STIME TTY          TIME CMD
...
root     1700     1  0 Sep11 ?        00:00:00 /usr/sbin/sshd -D
jde      3350  1700  0 17:52 ?        00:00:00  \_ sshd: jde@pts/0
jde      3378  3350  0 17:52 pts/0    00:00:00      \_ -bash
jde      3567  3378  0 17:54 pts/0    00:00:00          \_ ps -ef --forest

You can clearly see that:

• Process 1700, the SSH server (the d in sshd is for daemon), was launched by the init process (PID 1) and is run by root.
• Process 3350 was launched by the SSH server when you connected. It is your SSH session and manages your terminal device, named pts/0 here.
• Process 3378 is a Bash login shell that was launched when you connected (as configured in /etc/passwd) and is attached to terminal pts/0.
• Process 3567 is the ps command you launched from the shell.

Running more processes

Let’s run some other processes and see if we can list them.

Open a new terminal on your local machine and connect to the same server.

If you go back to the first terminal and run the ps command again, you should see both virtual terminal processes corresponding to your two terminals, as well as the two bash shells running within them:

$> ps -ef --forest
...
root     1700     1  0 Sep11 ?        00:00:00 /usr/sbin/sshd -D
jde      3350  1700  0 17:52 ?        00:00:00  \_ sshd: jde@pts/0
jde      3378  3350  0 17:52 pts/0    00:00:00  |   \_ -bash
jde      3801  3378  0 18:22 pts/0    00:00:00  |       \_ ps -ef --forest
jde      3789  1700  0 18:21 ?        00:00:00  \_ sshd: jde@pts/1
jde      3791  3789  0 18:21 pts/1    00:00:00      \_ -bash

Sleeping process

Run a sleep command in the second terminal:

$> sleep 1000

It launches a process that does nothing for 1000 seconds, but keeps running.

It will block your terminal during that time, so go back to the other terminal and run the following ps command, with an additional -u jde option to filter only processes belonging to your user:

$> ps -f -u jde --forest
UID       PID  PPID  C STIME TTY          TIME CMD
...
jde      3350  1700  0 17:52 ?        00:00:00 sshd: jde@pts/0
jde      3378  3350  0 17:52 pts/0    00:00:00  \_ -bash
jde      3823  3378  0 18:24 pts/0    00:00:00      \_ ps -f -u jde --forest
jde      3789  1700  0 18:21 ?        00:00:00 sshd: jde@pts/1
jde      3791  3789  0 18:21 pts/1    00:00:00  \_ -bash
jde      3812  3791  0 18:23 pts/1    00:00:00      \_ sleep 1000

You can indeed see the running process started with the sleep command. It ends on its own once its 1000 seconds have passed, or you can stop it with Ctrl+C in the second terminal.

Other monitoring commands

Here are other ways to inspect processes and have more information on their resource consumption:

• The htop command (a better version of the older top command, meaning table of processes, named after its creator, Hisham’s top), shows processes along with CPU and memory consumption. It’s an interactive command you can exit with q (quit).
• The free command is not directly related to processes, but it helps you know how much memory is remaining on your system.

$> free -m
              total        used        free      shared  buff/cache   available
Mem:            985          90         534           0         359         751
Swap:             0           0           0

More information

The -m option of the free command displays memory size in mebibytes, a more human-readable quantity, instead of bytes.

Exit status

How children indicate success to their parent.

What is an exit status?

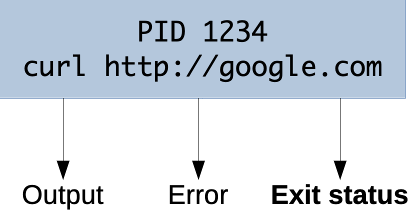

The exit status of a process is a small number (typically from 0 to 255) passed from a child process to its parent process when it has finished executing.

It is meant to allow the child process to indicate how or why it exited.

It’s common practice for the exit status of Unix/Linux programs to be 0 to indicate success, and greater than 0 to indicate an error (it is sometimes also called an error level).

Retrieving the exit status in a shell

In a typical shell like Bash, you can retrieve the exit status of last executed command from the special variable $?:

$> ls /
...

$> echo $?
0

$> ls file-that-does-not-exist
ls: cannot access 'file-that-does-not-exist': No such file or directory

$> echo $?
2

Retrieving the exit status in code

Exit codes are not a feature that is limited to command line use. When running a program from an application, you can also obtain the exit status.

For example:

• By using the &$return_var reference when calling PHP’s exec function
• By calling the Process#exitValue() method after calling Runtime#exec(String command) in Java
• By listening to the close event when calling Node.js’s spawn function

Meaning of exit statuses

The meaning of exit statuses is unique to the program you are running. For example, the manual of the ls command documents the following values:

Exit status:
  0      if OK,
  1      if minor problems (e.g., cannot access subdirectory),
  2      if serious trouble (e.g., cannot access command-line argument).

But this will be different for other programs or applications.

The only thing you can rely on for the majority of programs is that 0 is good, anything else is probably bad.

Standard streams

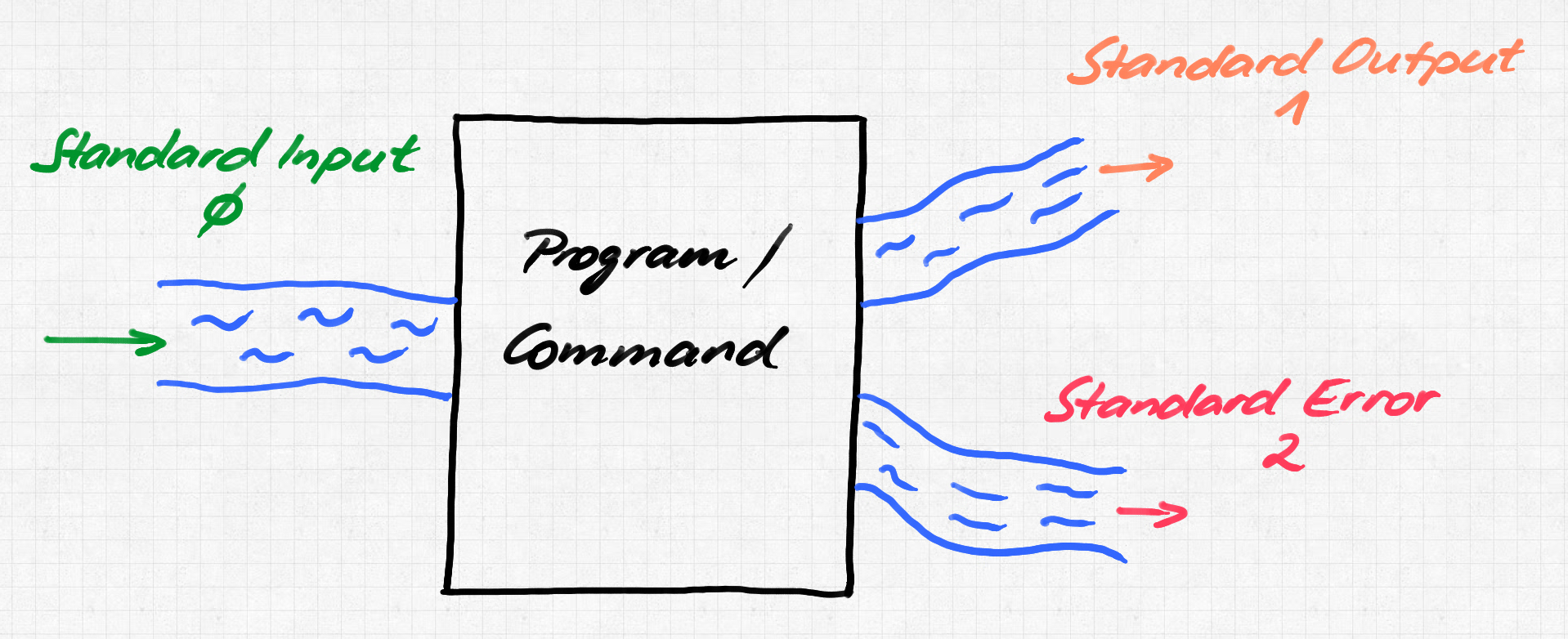

Standard streams are preconnected input and output communication channels between a process and its environment.

The good old days

In pre-Unix (before 1970) systems, programs had to explicitly connect to input and output devices. This was done differently for each device (e.g. magnetic tape drive, disk drive, printer, etc) and operating system.

Unix streams

Unix introduced abstract devices and the concept of a data stream: an ordered sequence of data bytes which can be read until the end of file (EOF).

A program may also write bytes as desired and need not declare how many there will be or how to group them. The data going through a stream may be text (with any encoding) or binary data.

This was groundbreaking at the time because a program no longer had to know or care what kind of device it is communicating with, as had been the case until then.

stdin, stdout & stderr

Any new Unix process is automatically connected to the following streams by default:

Streams, the keyboard, and the terminal

Another Unix breakthrough was to automatically associate:

• The input stream with your terminal keyboard;
• The output and error streams with your terminal display.

This is done by default unless a program chooses to do otherwise.

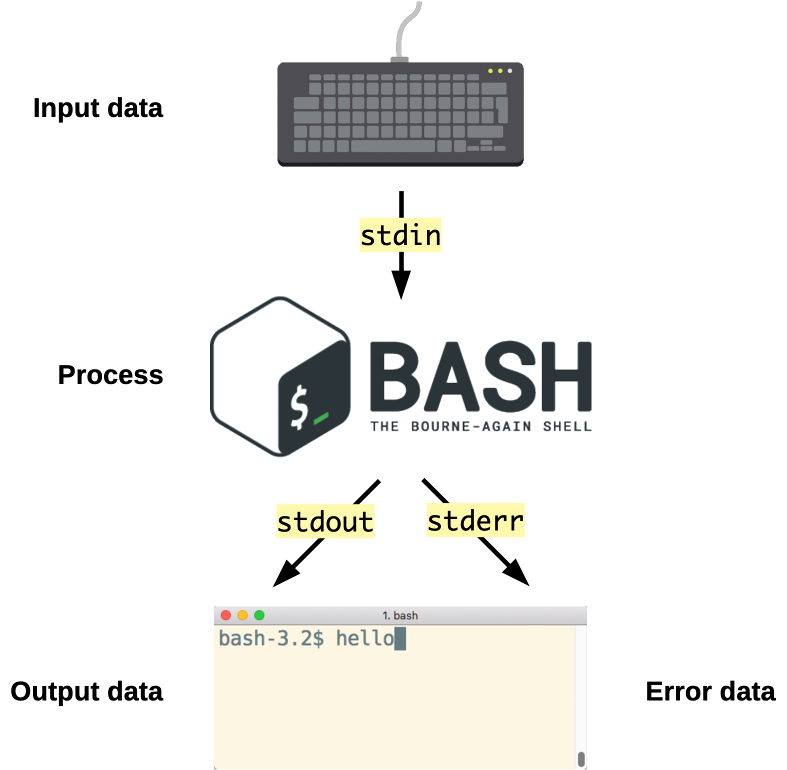

For example, when your favorite shell, e.g. Bash, is running, it automatically receives keyboard input, and its output data and errors are automatically displayed in the terminal.

Stream inheritance

A child will automatically inherit the standard streams of its parent process (unless redirected, more on that later).

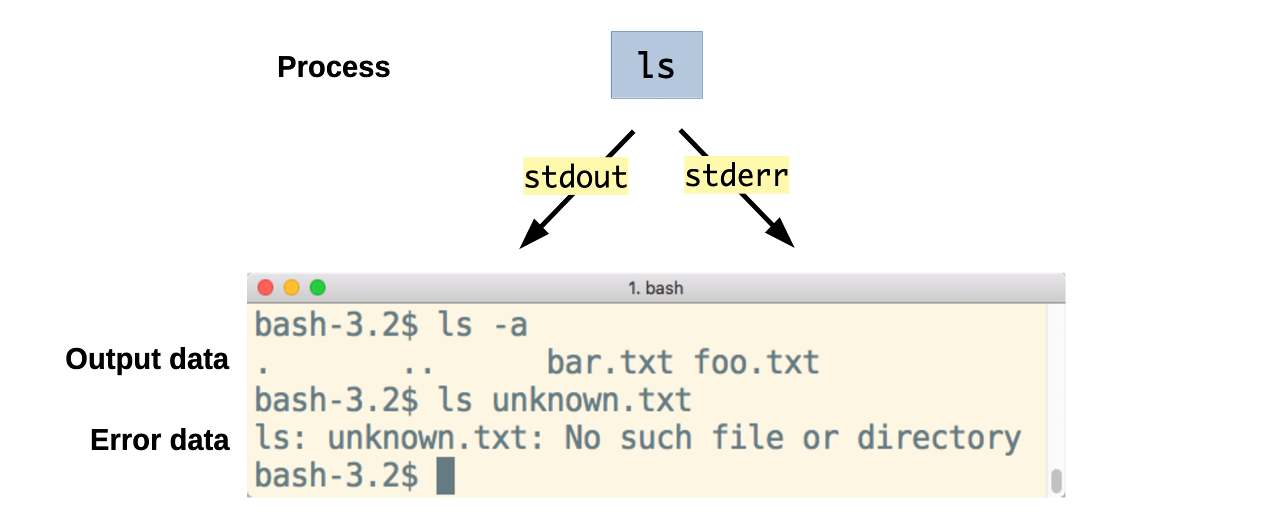

For example, when you run an ls command, you do not have to specify that the resulting list of files should be displayed in the terminal. The standard output of the parent process, in this case your shell (e.g. Bash) is inherited by the ls process.

Similarly, when you run the ssh command to communicate with another machine, you do not have to explicitly connect your keyboard input to this new process. As the SSH client is a child process of the shell, it inherits the same standard input.

Optional input stream

A process is not obligated to use its input or output streams. For example, the ls command produces output (or an error) but takes no input (it has arguments, but that does not come from the input data stream).

Optional output stream

Similarly, a process is not obligated to use its output streams. For example, when you cat a file, it outputs the content of the file to the standard output stream, but it does not use the standard error stream:

$> cat data.txt
Hello World

Unless the file does not exist, in which case it will output an error message to the standard error stream, and nothing to the standard output stream.

$> cat unknown-file
cat: unknown-file: No such file or directory

Stream redirection

The standard streams can be redirected.

Redirection means capturing output from a file or command, and sending it as input to another file or command.

Any Unix process has a number of file descriptors. They are an abstract indicator used to access a file or other input/output resource such as a pipe (we’ll talk about these later) or socket.

The first three file descriptors correspond to the standard streams by default:

Redirect standard output stream

The > shell operator redirects an output stream.

For example, the following line runs the ls command, but instead of displaying the result in the terminal, the standard output stream (file descriptor 1) is redirected to the file data.txt:

$> ls -a 1> data.txt

$> ls
data.txt  directory1  file1

$> cat data.txt
.
..
data.txt
directory1
file1

More information

data.txt is in its own list: the shell creates the file before it starts ls, so that it can connect the standard output of ls to it.

How to use standard output redirection

You can do the same with any command that produces output:

$> echo Hello 1> data.txt

$> cat data.txt
Hello

Note that the > operator overwrites the file. Use >> instead to append to the end of the file:

$> echo World 1>> data.txt

$> cat data.txt
Hello
World

If you specify no file descriptor, standard output (1) is redirected by default:

$> echo Hello > data.txt
$> echo Again >> data.txt
$> cat data.txt
Hello
Again

Redirect standard error stream

Note that error messages are not redirected using the redirect operator (>) like in the previous example. Errors are still displayed in the terminal and the file remains empty:

$> ls unknown-file > error.txt
ls: unknown-file: No such file or directory

$> cat error.txt

This is because most commands send errors to the standard error stream (file descriptor 2) instead of the standard output stream.

If you want to redirect the error message to a file, you must redirect the standard error stream instead:

$> ls unknown-file 2> error.txt

$> cat error.txt
ls: unknown-file: No such file or directory

Both standard output and error streams

Some commands will send data to both output streams (standard output and standard error) in the same run. As we’ve seen, both are displayed in the terminal by default.

For example, the grep command prints the lines of a file that contain a word, and with the -r (recursive) option, it searches all the files of a directory. The following command searches the SSH configuration files for the word PasswordAuthentication. Run as a regular user, it prints the lines it finds to the standard output stream, and an error to the standard error stream for each file it is not allowed to read, such as the server’s private SSH keys, which only root may read:

$> grep -r PasswordAuthentication /etc/ssh
grep: /etc/ssh/ssh_host_ecdsa_key: Permission denied
/etc/ssh/ssh_config:#   PasswordAuthentication yes
/etc/ssh/sshd_config:#PasswordAuthentication yes
/etc/ssh/sshd_config:# PasswordAuthentication.  Depending on your PAM configuration,
/etc/ssh/sshd_config:# PAM authentication, then enable this but set PasswordAuthentication
grep: /etc/ssh/ssh_host_rsa_key: Permission denied
grep: /etc/ssh/ssh_host_ed25519_key: Permission denied

Here, the lines starting with /etc/ssh/ are the output data, while the lines starting with grep: are error messages on the standard error stream.

Redirect standard output stream (grep)

This example demonstrates how the standard output and error streams can be redirected separately.

The following version redirects standard output to the file found.txt:

$> grep -r PasswordAuthentication /etc/ssh > found.txt
grep: /etc/ssh/ssh_host_ecdsa_key: Permission denied
grep: /etc/ssh/ssh_host_rsa_key: Permission denied
grep: /etc/ssh/ssh_host_ed25519_key: Permission denied

$> cat found.txt
/etc/ssh/ssh_config:#   PasswordAuthentication yes
/etc/ssh/sshd_config:#PasswordAuthentication yes
/etc/ssh/sshd_config:# PasswordAuthentication.  Depending on your PAM configuration,
/etc/ssh/sshd_config:# PAM authentication, then enable this but set PasswordAuthentication

As you can see, the lines that were found are no longer displayed since they have been redirected to the file, but the error messages printed on the standard error stream are still displayed.

Redirect standard error stream (grep)

The following version redirects standard error to the file errors.txt:

$> grep -r PasswordAuthentication /etc/ssh 2> errors.txt
/etc/ssh/ssh_config:#   PasswordAuthentication yes
/etc/ssh/sshd_config:#PasswordAuthentication yes
/etc/ssh/sshd_config:# PasswordAuthentication.  Depending on your PAM configuration,
/etc/ssh/sshd_config:# PAM authentication, then enable this but set PasswordAuthentication

$> cat errors.txt
grep: /etc/ssh/ssh_host_ecdsa_key: Permission denied
grep: /etc/ssh/ssh_host_rsa_key: Permission denied
grep: /etc/ssh/ssh_host_ed25519_key: Permission denied

This time, the lines that were found are displayed in the terminal as with the initial command, but the error messages have been redirected to the file.

Redirect both standard output and error streams (grep)

You can perform both redirections at once in one command:

$> grep -r PasswordAuthentication /etc/ssh 1> found.txt 2> errors.txt

$> cat errors.txt
grep: /etc/ssh/ssh_host_ecdsa_key: Permission denied
grep: /etc/ssh/ssh_host_rsa_key: Permission denied
grep: /etc/ssh/ssh_host_ed25519_key: Permission denied

$> cat found.txt
/etc/ssh/ssh_config:#   PasswordAuthentication yes
/etc/ssh/sshd_config:#PasswordAuthentication yes
/etc/ssh/sshd_config:# PasswordAuthentication.  Depending on your PAM configuration,
/etc/ssh/sshd_config:# PAM authentication, then enable this but set PasswordAuthentication

Combine standard output and error streams (grep)

In some situations, you might want to redirect all of a command’s output (both the standard output stream and error stream) to the same file.

You can do that with the &> operator:

$> grep -r PasswordAuthentication /etc/ssh &> all.txt

$> cat all.txt
grep: /etc/ssh/ssh_host_ecdsa_key: Permission denied
grep: /etc/ssh/ssh_host_rsa_key: Permission denied
grep: /etc/ssh/ssh_host_ed25519_key: Permission denied
/etc/ssh/ssh_config:#   PasswordAuthentication yes
/etc/ssh/sshd_config:#PasswordAuthentication yes
/etc/ssh/sshd_config:# PasswordAuthentication.  Depending on your PAM configuration,
/etc/ssh/sshd_config:# PAM authentication, then enable this but set PasswordAuthentication

Tip

&> file.txt is equivalent to using both 1> file.txt and 2> file.txt.

More information

The lines are not in the same order as in the terminal. When its standard output is a file, grep collects the lines it finds and writes them in one go, while it writes each error as soon as it happens.

Redirect standard input stream

Just as a command’s output can be redirected to a file, its input can be redirected from a file.

Let’s create a file for this example:

$> echo foo > bar.txt

The gzip command reads data from its standard input stream, and with the --stdout option outputs the result to its standard output stream:

gzip --stdout < bar.txt > bar.txt.gz

More information

The above command combines two redirections to compress the contents of the bar.txt file and save the result into bar.txt.gz.

Pipelines

The Unix philosophy: the power of a system comes more from the relationships among programs than from the programs themselves.

What is a pipeline?

Remember that all Unix systems standardize the following:

• All processes have a standard input stream.
• All processes have a standard output stream.
• Data streams transport text or binary data.

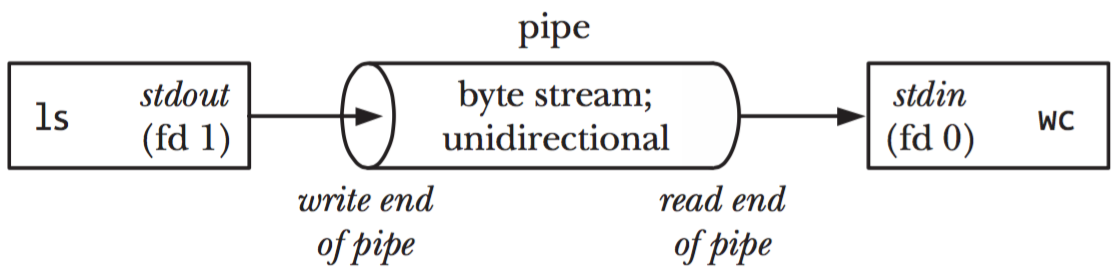

Therefore, the standard output stream of process A can be connected to the standard input stream of another process B.

Processes can be chained into a pipeline, each process transforming data and passing it to the next process.

A simple pipeline

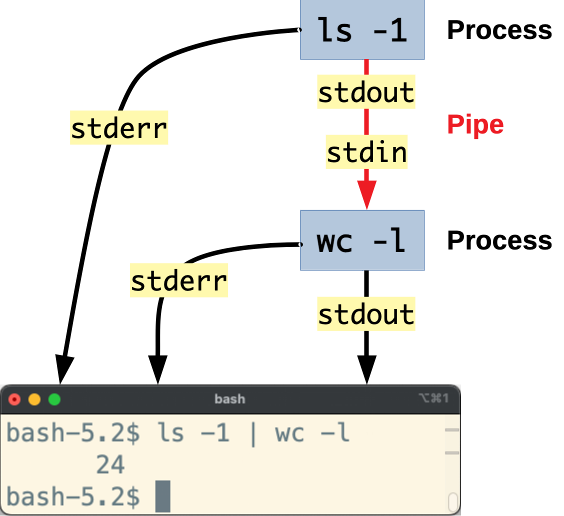

The | operator (a vertical pipe) is used to connect two processes together. Let’s use two commands, one that prints text as output and one that reads text as input:

• The ls (list) command produces a list of files, one by line with the -1 option.
• The wc (word count) command can count words, lines (with the -l option), characters or bytes in its input.

You can pipe them together like this:

$> ls -1 | wc -l

This redirects (pipes) the output of the ls command into the input of the wc command, which will tell us how many files there are in the listed directory.

A pipeline is also a way to find what you are looking for in a long output. The ps -ef command lists every process running on the system, and the grep command keeps only the lines of its input that contain a word. Together, they find the processes of the SSH server:

$> ps -ef | grep sshd
root        3824       1  0 11:07 ?        00:00:00 sshd: /usr/sbin/sshd [listener] 0 of 10-100 startups
root        3840    3824  0 11:07 ?        00:00:00 sshd: jde [priv]
jde         3851    3840  0 11:07 ?        00:00:00 sshd: jde@pts/0
jde         3854    3852  0 11:07 pts/0    00:00:00 grep --color=auto sshd

Tip

The last line is grep itself. Both commands of a pipeline run at the same time, so grep was running while ps listed the processes, with sshd in its command line.

The Unix philosophy

Pipelines are one of the core features of Unix systems.

Because Unix programs can be easily chained together, they tend to be simpler and smaller. Complex tasks can be achieved by chaining many small programs together.

This is, in a few words, the Unix philosophy:

• Write programs that do one thing and do it well
• Write programs to work together
• Write programs to handle text streams, because that is a universal interface

Tip

Although many programs handle text streams, others also handle binary streams. For example, the ImageMagick library can process images and the FFmpeg library can process videos.

A more complex pipeline

This command pipeline combines five different commands, processing the text data at each step and passing it along to the next command to arrive at the final result. Each of these commands only knows how to do one job:

$> find . -type f | \
   sed 's/.*\///' | \
   grep -E ".+\.[^\.]+$" | \
   sed 's/.*\.//' | \
   sort | \
   uniq -c

  147 jpg
10925 js
 2158 json
   15 less
   45 map
 1515 md

References

• The Linux Process Journey - PID 0 (swapper) - Shlomi Boutnaru
• The Linux Process Journey - PID 1 (init) - Shlomi Boutnaru
• The Linux Process Journey - PID 2 (kthreadd) - Shlomi Boutnaru
• What is the main purpose of the swapper process in Unix? - superuser
• I/O Redirection (The Linux Documentation Project)
• Here Documents (The Linux Documentation Project)
• Unix/Linux - Shell Input/Output Redirections

Appendix: Discard an output stream

Sometimes you might not be interested in one of the output streams.

For example, you may only want the error messages of the grep command from the previous examples, to see which files it could not read, and don’t care about the lines it found. You don’t want to have to delete a useless file either.

The /dev/null device

The file /dev/null is available on all Unix systems and is a null device (sometimes also called a black hole). It’s a Unix device file that you can write anything to, but that will discard all received data.

It never contains anything:

$> cat /dev/null

Even after you write to it:

$> echo Hello World > /dev/null

$> cat /dev/null

Redirect a stream to the null device

When you don’t care about an output stream, you can simply redirect it to the null device:

$> grep -r PasswordAuthentication /etc/ssh > /dev/null
grep: /etc/ssh/ssh_host_ecdsa_key: Permission denied
grep: /etc/ssh/ssh_host_rsa_key: Permission denied
grep: /etc/ssh/ssh_host_ed25519_key: Permission denied

In this example, the standard output stream is redirected to the null device, and therefore discarded, while the standard error stream is displayed normally.

Other redirections to the null device

You can also redirect the standard error stream to the null device, to see only the lines that were found:

$> grep -r PasswordAuthentication /etc/ssh 2> /dev/null
/etc/ssh/ssh_config:#   PasswordAuthentication yes
/etc/ssh/sshd_config:#PasswordAuthentication yes
/etc/ssh/sshd_config:# PasswordAuthentication.  Depending on your PAM configuration,
/etc/ssh/sshd_config:# PAM authentication, then enable this but set PasswordAuthentication

Or you can redirect both output streams. In this case, all output and error messages will be discarded:

$> grep -r PasswordAuthentication /etc/ssh &> /dev/null

Appendix: Redirect one output stream to another

You can also redirect one output stream into another output stream.

$> echo Hello World
Hello World

$> echo Hello World > /dev/null

$> echo Hello World 2> /dev/null
Hello World

The i>&j operator redirects file descriptor i to file descriptor j.

$> echo Hello World 1>&2
Hello World

$> echo Hello World > /dev/null 1>&2
Hello World

$> echo Hello World 2> /dev/null 1>&2

Tip

This can be useful if you’re writing a shell script and want to print error messages to the standard error stream.

Appendix: Here documents

The << operator also performs standard input stream redirection but is a bit different. It’s called a here document and can be used to send multiline input to a command or script, preserving line breaks and other whitespace. For example, you could use it to send a list of names or a set of commands to be executed to a script.

Typing the following cat command starts a here document delimited by the string EOF:

$> cat << EOF
> Hello
> World
> EOF
Hello
World

Tip

After you type the first line, you won’t get your usual prompt back, only the > prompt of a line still being typed. The here document remains open and you can type more text. Typing EOF again and pressing Enter closes the document.

As you can see, the text you typed is printed by cat, with line breaks preserved.

Appendix: Welcome to the future

Some of the previously-mentioned commands are older than you, although they are regularly updated. But new command line tools are also being developed today:

• The procs command is a modern interactive alternative to the ps command for listing processes, written in Rust, a modern systems programming language.
• The btm command is a modern alternative to htop and top with more features, also written in Rust.
